ASA 111
EUR
72.00
€ 72.00
Hersteller
Extron
Art.Nr.
60-738-01
EAN
60-738-01
Produktbeschreibung
Hauptmerkmale
- ?Wandelt unsymmetrische Stereo-Audiosignale in unsymmetrische Mono-Audiosignale um
- Passive Audio-Summierung durch Widerstandsnetzwerk
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|

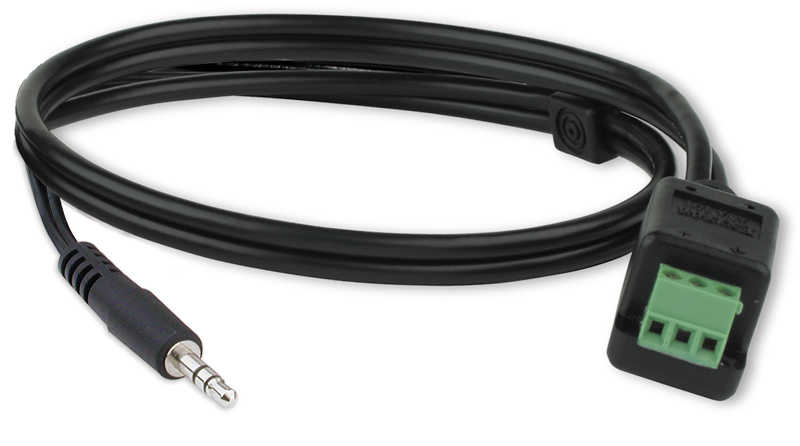

ASA 111 | Stereo-Klinkensteckereingang | 60-738-01 |
Technische Daten
Technische Daten
-
ASA 111, ASA 121, ASA 131, ASA 141 Audio Gain ASA 111, ASA 121 See the table below. Tested with an unbalanced output and a 20k ohm load. ASA 131 See the table below. Tested with a balanced output and a 20k ohm load. ASA 141 See the table below. Tested with a 20k ohm output load. Gain numbers are ±2 dB. Frequency response ASA 111, ASA 121, ASA 131 20 Hz to 20 kHz, ±0.05 dB ASA 141 with -10 dBV, +4 dBu, or +15 dBV input 20 Hz to 20 kHz, -3 dB to +1 dB THD + Noise ASA 111, ASA 121, ASA 131 0.03% @ 20 Hz to 20 kHz at nominal level ASA 141 -10 dBV input 0.05%, 1 kHz, 1% from 40 Hz to 20 kHz +4 dBu input 0.05%, 1 kHz, 1% from 50 Hz to 20 kHz +15 dBV input 0.05%, 1 kHz, 1% from 80 Hz to 20 kHz S/N 130 dB at maximum output Audio input Number/signal type ASA 111, ASA 121, ASA 141 1 stereo, unbalanced ASA 131 1 stereo, balanced Connectors ASA 111 (1) 3.5 mm male stereo mini plug (tip-ring-sleeve) ASA 121, ASA 141 1 pair of male RCA (tip-ring) ASA 131 (1) 3.5 mm captive screw connector, 5-pole Impedance ASA 111, ASA 121 22k ohms (with a 20k ohm unbalanced load, one input terminated);
4k ohms (with a 20k ohm unbalanced load, both inputs terminated)ASA 131 24k ohms (with a 20k ohm balanced load, one input terminated);
7k ohms (with a 20k ohm balanced load, both inputs terminated)ASA 141 5.4k ohms (with a 20k ohm balanced load, both inputs terminated) Nominal level ASA 111, ASA 121 -10 dBV (316 mVrms) ASA 131 +4 dBu (1.23 Vrms) ASA 141 -10 dBV (316 mVrms) or +4 dBu (1.23 Vrms) Maximum level ASA 111, ASA 121, ASA 131 +24 dBu (12.3 V) ASA 141 +15 dBV (5.6 V) NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output Number/signal type ASA 111, ASA 121 1 mono, unbalanced ASA 131 1 mono, balanced ASA 141 1 transformer, mono, balanced/unbalanced Connectors (1) 3.5 mm direct insertion captive screw connector, 3 pole Impedance (with 50 ohm input impedance) ASA 111, ASA 121 1k ohms unbalanced ASA 131 2k ohms balanced ASA 141 3.3k ohms balanced (typical) Nominal level ASA 111, ASA 121 -10 dBV (316 mV) ASA 131 +4 dBu (1.23 V) ASA 141 -10 dBV (316 mV) or +4 dBu (1.23 V) Maximum level ASA 111, ASA 121 +24 dBu (12.3 V) ASA 131 +24 dBu (12.3 V) ASA 141 +15 dBV (5.6 V) General Power Not powered Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingRack mount Can be attached to any flat surface with supplied Velcro®. Enclosure type Molded plastic Enclosure dimensions ASA 111, ASA 121, ASA 131 0.7" H x 0.7" W x 1.3" D
(1.8 cm H x 1.7 cm W x 3.4 cm D)
(Depth excludes the 24 inches long pigtail for ASA 121 and the 24 inches long single cable for the ASA 111 and ASA 131.)ASA 141 1.1" H x 1.1" W x 1.6" D
(2.8 cm H x 2.8 cm W x 4.0 cm D)
