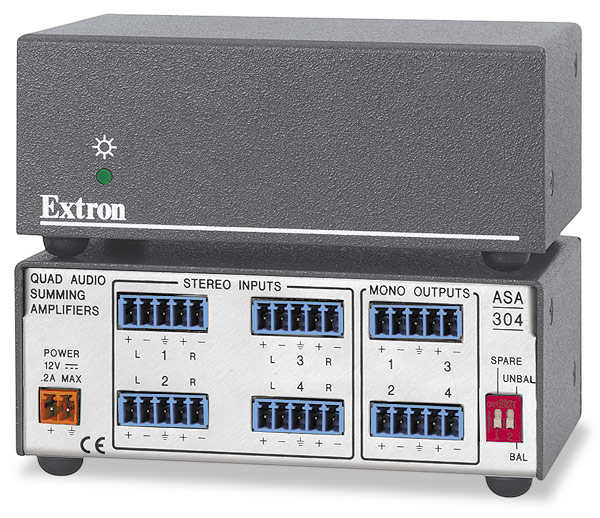

ASA 304
EUR
360.00
€ 360.00
Hersteller
Extron
Art.Nr.
60-552-20
EAN
60-552-20
Produktbeschreibung
Hauptmerkmale
- Wandelt Stereo-Audiosignale in symmetrische oder unsymmetrische Mono-Audiosignale um
- Stereo-Eingänge und Mono-Ausgänge an Schraubklemmleisten
- ±6 dB-Schalter zur Wahl des Ausgangspegels
- Rackmontierbares, 1 HE hohes Metallgehäuse mit
1/4-Rackbreite
| Modell | Beschreibung der Version | Teilenummer | |
|---|---|---|---|
| ASA 304 | Schraubklemmleisten-Eingang | 60-552-20 |
Technische Daten
Technische Daten
-
ASA 204, ASA 304 Audio Gain Generally unity. Actual gain depends on whether or not both inputs have signals and also on the output wiring and DIP switch settings. See the table below.
Frequency response 20 Hz to 20 kHz, ±0.05 dB THD + Noise 0.03% @ 1 kHz at nominal level S/N >90 dB (balanced) at rated maximum output CMRR >75 dB @ 20 Hz to 20 kHz Audio input Number/signal type ASA 204 4 stereo, unbalanced ASA 304 4 stereo, balanced/unbalanced Connectors ASA 204 4 pairs of female RCA (tip-ring) ASA 304 (4) 3.5 mm captive screw connectors, 5 pole Impedance ASA 204 >10k ohms unbalanced, DC coupled ASA 304 >17k ohms unbalanced, 23k ohms balanced, DC coupled Nominal level ASA 204 -10 dBV (316 mV) ASA 304 +4 dBu (1.23 V) Maximum level +20 dBu (7.75 V), (balanced or unbalanced), at 1% THD+N NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output Number/signal type 4 mono, balanced/unbalanced Connectors (2) 3.5 mm captive screw connectors, 5 pole (double stacked) Impedance <50 ohms unbalanced, 100 ohms balanced Nominal level ASA 204 -10 dBV (316 mV) ASA 304 +4 dBu (1.23 V) Maximum level (Hi-Z) ASA 204, ASA 304 only >+23 dBu, balanced; or >+17 dBu, unbalanced at 1% THD+N Maximum level (600 ohm) All models >+21 dBm, balanced; or >15 dBu, unbalanced at 1% THD+N General External power supply 100 VAC to 240 VAC, 50-60 Hz, external, to 12 VDC, 1 A (max.), regulated Power input requirements 12 VDC, 0.2 A Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount Yes, with optional 1U rack shelf Furniture mount Yes, with optional mini under desk mounting kit Pole mount Yes, with optional mini projector mounting kit Enclosure type Metal Enclosure dimensions 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
(4.3 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors.)Product weight 0.5 lbs (0.3 kg) Shipping weight 3 lbs (2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Product warranty 3 years parts and labor NOTE All nominal levels are at ±10%. (7.6-101609-D11) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-552-20 6,2 cm 18,1 cm 24,1 cm 0,79 kg
