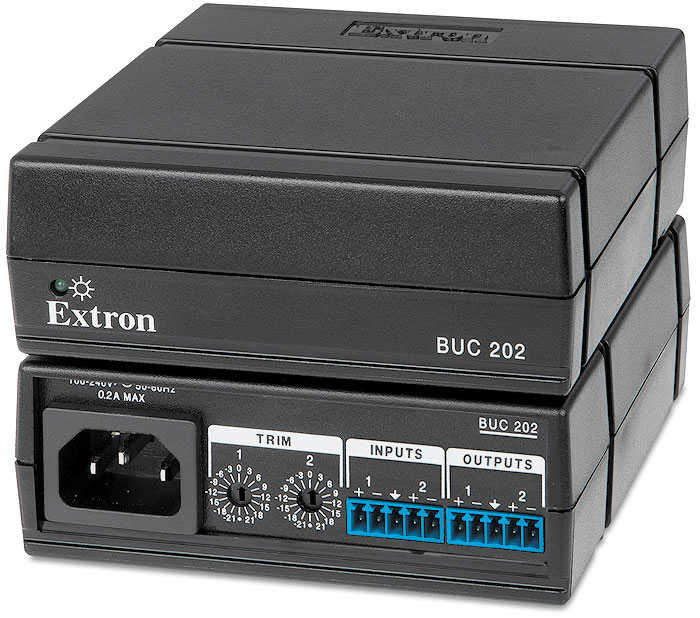

BUC 202
EUR
312.00
€ 312.00
Hersteller
Extron
Art.Nr.
60-1370-01
EAN
60-1370-01
Produktbeschreibung
Hauptmerkmale
- Wandelt unsymmetrische in symmetrische sowie symmetrische in unsymmetrische Audiosignale um
- Aktive Schaltung zur Kompensation
- Audio-Kabeltreiber zur Audiosignalübertragung über lange Strecken
- Eigenständiger, variabler Trimmregler für jeden Kanal mit großem 42 dB-Einstellbereich
- Vielseitiges 1 HE hohes Gehäuse mit 1/4-Rackbreite ermöglicht die Installation auf einer Rackschiene, unter einem Tisch oder in einem Pult
- Patentiertes ZipClip™ 200-Montageset im Lieferumfang enthalten:
- Sichere Montage auf einer Vielzahl von Öberflächen, einschließlich Rackschienen, Tische, Pulte und Tischbeine
- Kabelbinder-Öffnungen zur korrekten Zugentlastung und Sicherung der Kabel
- Freigabelasche für einfache Installation und Austausch der Produkte
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
BUC 202 | Audio-Konverter für symmetrische und unsymmetrische Signale | 60-1370-01 |
Technische Daten
Technische Daten
-
BUC 202 Audio Gain -21 dB to 21 dB, 3 dB increments, independent channels Gain error ±0.1 dB Frequency response 20 Hz to 20 kHz, ±0.5 dB THD + Noise 0.05% @ 1 kHz at maximum output level S/N >100 dB, at 0 dB gain Stereo channel separation >80 dB @ 1 kHz Audio input Number/signal type 1 stereo, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance >10k ohms unbalanced/balanced Nominal level -10 dBV to +4 dBu, adjustable Maximum level +25 dBu, balanced, +20 dBu unbalanced CMRR 75 dB typ @ 1 kHz NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu. Audio output Number/signal type 1 stereo, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Maximum level +25 dBu balanced, +19 dBu unbalanced General Power supply Internal
Input: 100-240 VAC, 50-60 HzPower consumption 2.9 watts Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Thermal dissipation 9.9 BTU/hr Mounting Rack mount Yes, with optional 1U rack shelf, with the included ZipClip 200 mounting clip, or by securing to rack rails with tie wraps Furniture mount Yes, with the included ZipClip 200 mounting clip Pole mount Yes, using tie wraps Enclosure type High impact, high temperature plastic Enclosure dimensions 1.7" H x 4.3" W x 4.5" D (1U high, quarter rack wide)
(4.2 cm H x 11.0 cm W x 11.4 cm D)Product weight 0.8 lb (0.4 kg) Shipping weight 3 lbs (2 kg) Vibration Operating: 10-250 Hz, 0.25 Gp-p, 3 axes, 15 min. sweep Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class B, ICES, VCCI Environmental Complies with the appropriate requirements of RoHS, WEEE Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%, and all specifications are tested at unity gain unless otherwise noted. NOTE Specifications are subject to change without notice. (8.0-011314-D2) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-1370-01 26,7 cm 19,1 cm 7,5 cm 0,68 kg
