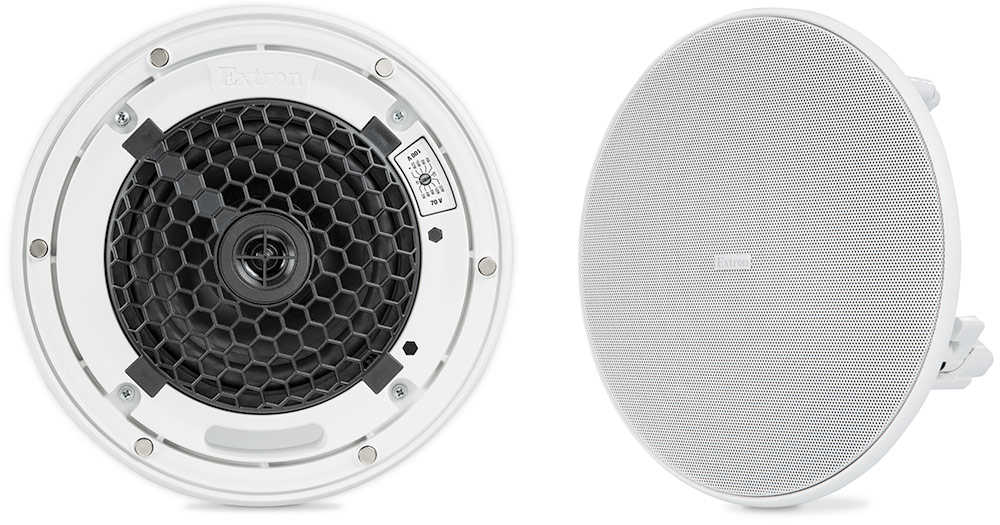

CS 26T Plus

Technische Daten

CS 26T Plus Speakers
Audio/acoustic and electrical
Speaker type	2-way ceiling speaker
Frequency range	42 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5)
Frequency response	58 Hz to 16 kHz, +/- 3 dB, half space
Power capacity	60 W (rms) continuous pink noise (per IEC 60268-5) 120 W (rms) continuous program
Nominal sensitivity	86 dB SPL, 1 W @ 1 m, half space
Nominal impedance	8 ohms per speaker
Crossover frequency	2.5 kHz
Nominal coverage angle	112° conical coverage
Rotary switch taps
70 V input	32 W, 16 W, 8 W, 4 W, 2 W, 8 ohms direct
100 V input	32 W, 16 W, 8 W, 4 W, 8 ohms direct
Woofer	(1) 6.5" (165 mm) polypropylene cone with moisture resistant coating
Tweeter	(1) 0.75" (19.1 mm) PEI dome
Overload protection	Full range power limiter, protecting the tweeter, woofer, and crossover
Input/output connectors	(1) 5 mm captive screw connector, 4 pole with loop out
General
Package	2 speakers (1 pair)
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting	Ceiling mountable with optional ceiling mounting kit or CS 120P enclosure
Enclosure type
Enclosure materials	High-impact, fire-resistant (UL94V-0) plastic
Enclosure design	Plastic, open back, infinite baffle
Grille material	Steel
Enclosure outer dimensions	3.97" H x 10.3" diameter (10.1 cm H x 26.2 cm diameter) 3.63" (9.2 cm) from front (bottom) of ceiling tile to top of connected captive screw connector
Cutout dimensions	9.2" diameter (23.4 cm diameter)
Product weight	Single: 5.7 lbs (2.6 kg)
Shipping weight	Pair: 15 lbs (7 kg)
Regulatory compliance
Safety	CE, UL 2043, UL 1480, NFPA 90A, NFPA 70 UL listed for use in plenum air spaces: UL 2043 listed for heat and smoke release (only when used with CS 120P). UL 1480 listed for commercial and professional audio systems.
EMI/EMC	CE
Product warranty	5 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(8.1-083115-D2)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-1505-03	32,4 cm	27,3 cm	33,0 cm	6,67 kg
