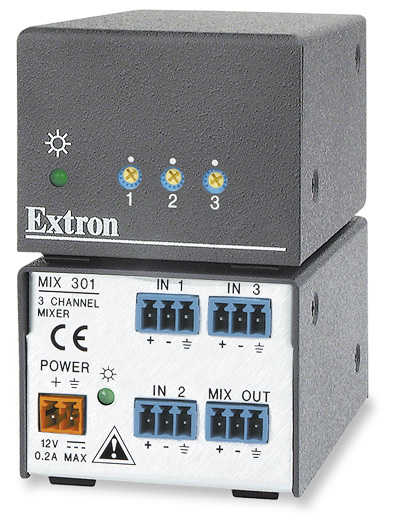

MIX 301
EUR
300.00
€ 300.00
Hersteller
Extron
Art.Nr.
60-737-01
EAN
60-737-01
Produktbeschreibung
Hauptmerkmale
- Kompatibel mit symmetrischen und unsymmetrischen Signalen
- Verstärkungsregelung für jeden Kanal mit einem großen Einstellbereich von -80 dB bis +20 dB
- Kompakte Größe für eine einfache Installation in einem Rack oder bei begrenztem Platz
- Rackmontierbares, 1 HE hohes Metallgehäuse mit 1/8-Rackbreite
- Externes Extron Everlast™-Netzteil im Lieferumfang enthalten (Teilenummer 70-1175-01)
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
MIX 301 | Audio-Mischer mit drei Kanälen | 60-737-01 |
Technische Daten
Technische Daten
-
MIX 301 Audio Gain Adjustable per input. When all three gain potentiometers are set to 12 o'clock, the gain is as follows:
Unbalanced output: -6 dB
Balanced output: 0 dBFrequency response 20 Hz to 20 kHz, ±0.05 dB THD + Noise 0.05% @ 1 kHz at nominal level S/N >90 dB, balanced, at maximum output (unweighted) CMRR >70 dB @ 60 Hz to 20 kHz Audio input Number/signal type 3 mono, balanced/unbalanced Connectors (3) 3.5 mm captive screw connectors, 3 pole Impedance >10k ohms unbalanced, DC coupled Nominal level -10 dBV (316 mVrms) or +4 dBu (1.23 Vrms) Maximum level >+18 dBV, (balanced or unbalanced) at 1% THD+N Input gain adjustment Mute to +20 dB, adjustable per input NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output Number/signal type 1 mono, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 3 pole Impedance 50 ohms unbalanced, 100 ohms balanced Nominal level -10 dBV (316 mVrms) unbalanced, or +4 dBu (1.23 Vrms) balanced, adjustable Maximum level +25 dBu, balanced with 100k ohm load at 1% THD+N
+18 dBm balanced with 600 ohm load at 1% THD+NGeneral External power supply 100 VAC to 240 VAC, 50-60 Hz, external, to 12 VDC, 1 A, regulated Power input requirements 12 VDC, 0.2 A (max.) Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount Yes, with optional 1U rack shelf or the Back of the Rack Mounting Kit Furniture mount Yes, with mini under-desk mounting kit Pole mount Yes, with optional mini pole mounting kit Enclosure type Metal Enclosure dimensions 1.7" H x 2.2" W x 3.0" D (1U high, one-eighth rack wide)
4.3 cm H x 5.6 cm W x 7.6 cm D
(Depth excludes connectors.)Product weight 0.2 lbs (0.1 kg) Shipping weight 2 lbs (2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Product warranty 3 years parts and labor NOTE All nominal levels are at ±10%. (7.6-101609-D2) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-737-01 6,2 cm 18,1 cm 24,1 cm 0,72 kg
