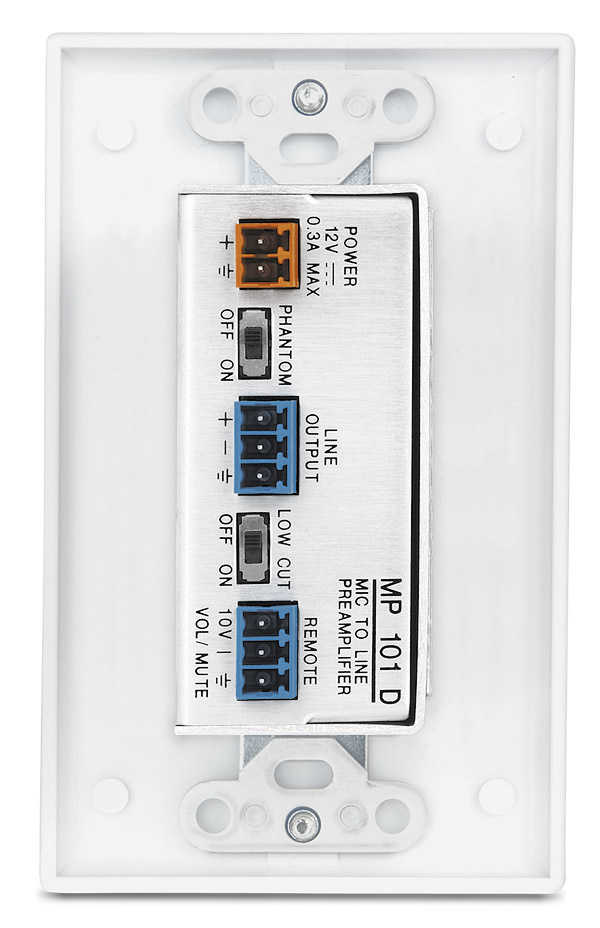

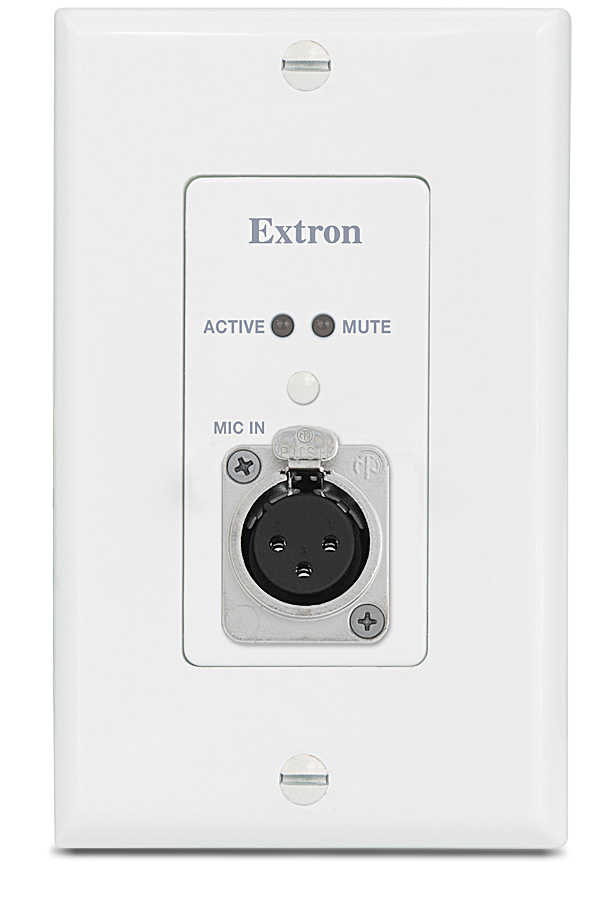

MP 101 D

Technische Daten

MP 101 Series
Audio
Gain	Adjustable, +25 dB to + 72 dB
Frequency response	20 Hz to 20 kHz, ±0.1 dB
THD + Noise (with a 10 Hz to 80 kHz bandwidth filter)	0.03% when input is -48 dBV and output is +4 dBu. 0.14% when input is -60 dBV and output is -10 dBV
S/N	92 dB at maximum output (unweighted, with a 10 Hz to 80 kHz bandwidth filter)
CMRR	>70 dB @ 20 Hz to 20 kHz
Low cut filter	75 Hz (18 dB per octave)
Equivalent input noise	<126 dBV (unweighted, with a 10 Hz to 80 kHz bandwidth filter)
Audio input
Number/signal type	1 mono, balanced
Connectors
MP 101	(1) 3.5 mm captive screw connector, 3 pole
MP 101 AAP, MP 101 D	1 female 3-pin XLR
Impedance	2k ohm balanced
Nominal level	-60 dBV or -48 dBV
Maximum level	-1.5 dBu, (balanced) at 1% THD+N
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu
Audio output
Number/signal type	1 mono, balanced
Connectors	(1) 3.5 mm captive screw connector, 3 pole
Impedance	<150 ohms balanced
Maximum level (Hi-Z)	>+25 dBu, balanced at 1% THD+N
Control/remote — preamp
Contact closure	(1) 3.5 mm captive screw connector, 3 pole
Contact closure pin configuration	Pin 1 = +10 VDC, 2 = volume/mute (variable voltage), 3 = Gnd
Volume control voltage range	0 V (mute) to 10 V (maximum volume)
Extron remote key pad control	(1) 3.5 mm captive screw connector, 3 pole
General
Power supply	External Input: 1002-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts
Power input requirements	12 VDC, 0.3 A
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount
MP 101	Yes, with optional 1U rack shelf or back of the rack mounting kit
MP 101 AAP	Yes, with optional faceplate or frame
Furniture mount
MP 101	Yes, with optional mini under-desk mounting kit
MP 101 D	Yes, in a decorator-style opening
Pole mount
MP 101	Yes, with optional mini projector mount kit
Enclosure type	Metal
Enclosure dimensions
MP 101	1.7" H x 2.2" W x 3.0" D (1U high, one-eighth rack wide) (4.3 cm H x 5.6 cm W x 7.6 cm D) (Depth excludes connectors.)
MP 101 AAP
Faceplate	1.4" H x 3.5" W x 0.1" D (3.5 cm H x 8.9 cm W x 0.3 cm D) (double space high AAP plate)
Device	1.1" H x 2.75" W x 1.8" D (2.8 cm H x 7.0 cm W x 4.6 cm D) (Depth excludes connectors.)
MP 101 D
Faceplate	2.6" H* x 1.3" W x 0.1" D (6.6 cm H* x 3.3 cm W x 0.3 cm D) (Fits the opening in a 1 gang decorator-style faceplate.) *Height is 3.8" (9.7 cm) including mounting tabs.
Device	2.75" H x 1.1" W x 1.8" D (7.0 cm H x 2.8 cm W x 4.6 cm D) (Depth excludes connectors.)
Product weight	0.3 lbs (0.1 kg)
Regulatory compliance	CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4462-D11)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-822-12	6,2 cm	18,1 cm	24,1 cm	0,77 kg
60-822-22	6,2 cm	18,1 cm	24,1 cm	0,82 kg
