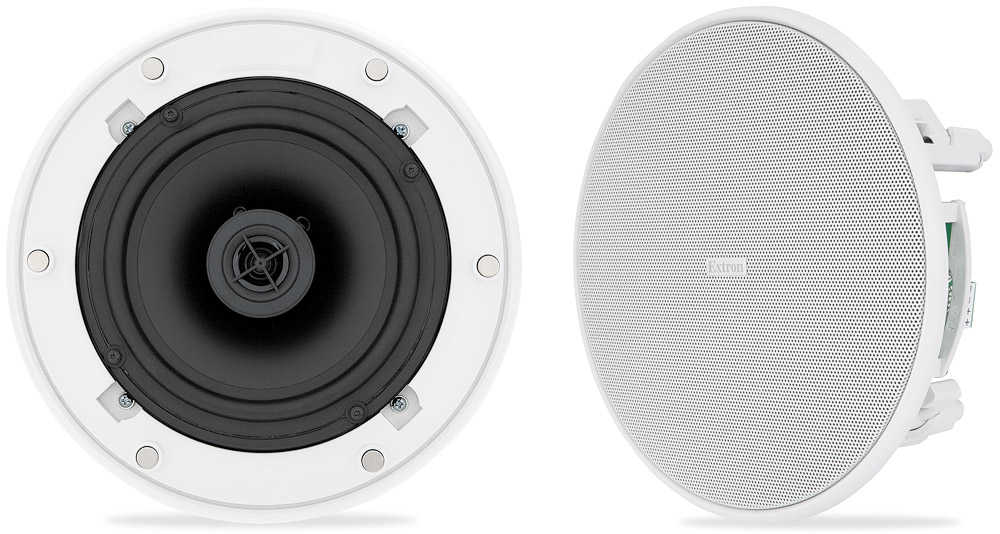

SF 26X

Technische Daten

SF 26X
Audio/acoustic and electrical
Speaker type	2-way, open back ceiling speaker
Frequency range	50 Hz to 20 kHz, -10 dB, half space
Power capacity	25 W (rms) continuous pink noise 50 W (rms) continuous program
Nominal sensitivity	83 dB SPL, 1 W, 1 m, half space (per IEC 60268-5)
Nominal impedance	8 ohms
Crossover frequency	2.3 kHz
Nominal coverage angle	107° conical coverage (1 kHz - 4 kHz, weighted 2 kHz - 4 kHz)
Woofer	(1) 6.5" (165.1 mm) polypropylene cone with moisture resistant coating
Tweeter	(1) 3/4" (19.05 mm) PEI dome
Overload protection	Full range power limiter, protecting the tweeter, woofer, and crossover
Input connector	(1) 5 mm captive screw connector, 4 pole with loop-through
General
Package	2 speakers (1 pair)
Included accessories	Cutout template, setup guide, 2 grille hooks
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Overload protection	Full range power limiter, protecting the tweeter, woofer, and crossover
Mounting	Ceiling mountable by itself or with optional ceiling mount kit
Baffle type	Plastic, open back, infinite baffle design
Outer dimensions	3.0" H x 9.0" diameter (75.0 mm H x 228.6 mm diameter) From front/bottom of the ceiling tile to the top of withdrawn locking arms
Cutout dimensions	7.6" diameter (194 mm diameter)
Product weight	2.6 lbs (1.2 kg) each
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Product warranty	5 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4034-D3-060517)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-1312-03	27,9 cm	29,2 cm	27,6 cm	3,86 kg
