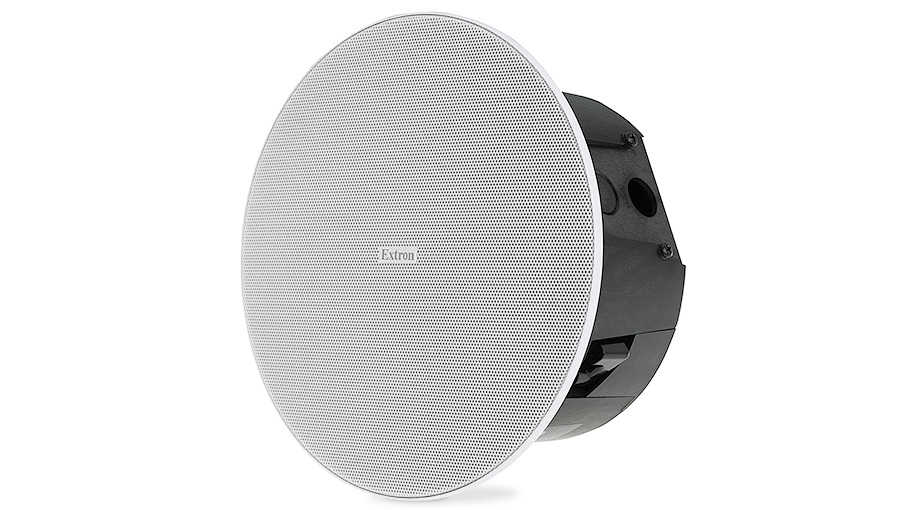

SF 3C LP
EUR
252.00
€ 252.00
Hersteller
Extron
Art.Nr.
60-1311-13
EAN
60-1311-13
Gewicht
6 kg
Produktbeschreibung
Hauptmerkmale
- 76 mm-Breitbandtreiber mit optimierter Bassreflex-Öffnung
- Flaches 102 mm-Gehäuse aus Verbundmaterial für Plenum-Umgebungen
- Frequenzbereich: 65 Hz bis 20 kHz
165° konische Abstrahlung - 16 W rosa Rauschen
32 W Musikleistung - 8 ? direkt
- Neu Federbügel für eine Deckenstärke von bis zu 57,1 mm
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
SF 3C LP | 76 mm große Deckenlautsprecher mit niedriger Einbautiefe - Paar | 60-1311-13 | |
SF 3CT LP | 76 mm große Deckenlautsprecher mit niedriger Einbautiefe, 70/100V - Paar | 60-1311-03 |
Technische Daten
Technische Daten
-
SF 3C LP Audio/acoustic and electrical Speaker type Low profile ceiling speaker with composite back can Frequency range 65 Hz to 20 kHz, -10 dB, half space (per IEC 60268-5) Frequency response 265 Hz to 19 kHz, +/-3 dB, half space Power capacity 16 W (rms) continuous pink noise (per IEC 60268-5)
32 W (rms) continuous programNominal sensitivity 83 dB SPL, 1 W, 1 m, 8 ohms direct, half space (per IEC 60268-5) Nominal coverage angle 165° conical coverage (1 kHz to 4 kHz) Nominal impedance 8 ohms Driver (1) 3" (76 mm) paper cone Input connector (1) 5 mm captive screw connector, 4 pole for 1 input and 1 loop-through General Package 2 speakers (1 pair) Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingMounting Ceiling mountable with included hardware:

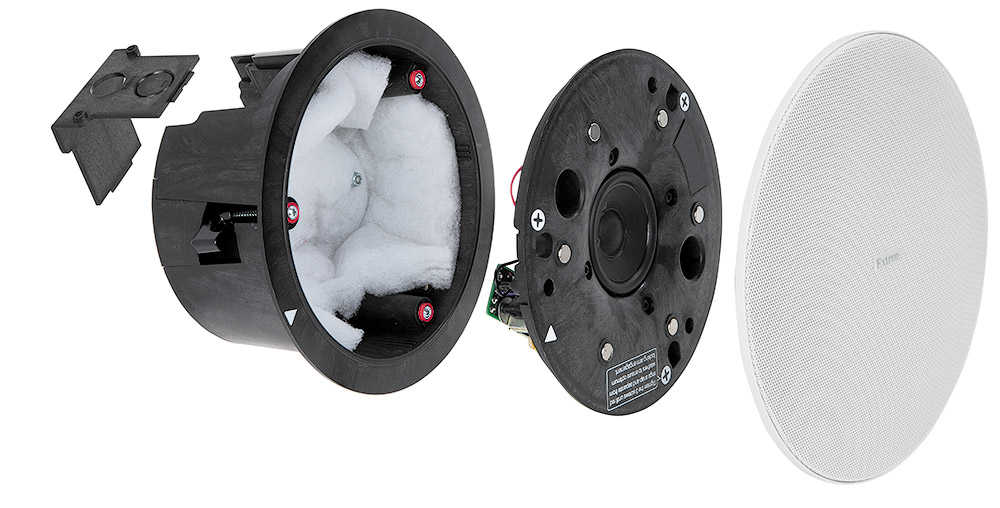

V-rails for 2' x 4' (600 mm x 1200 mm) ceiling tiles, and C-ringsEnclosure type Plenum rated, fire-resistant (UL94V-0) composite back can/baffle;
Magnetically attached powder-coated steel grille with plastic bezel.Enclosure outer dimensions 4.4" H x 8.9" diameter
(112 mm x 226 mm diameter)
4.0" H (102 mm H) from front of ceiling tile to top of enclosureCutout dimensions 7.6" diameter
(191 mm diameter)Product weight 2.9 lbs (1.3 kg) each Regulatory compliance Safety CE, UL 2043, UL1480, NFPA 90A, NFPA 70
UL Listed for use in plenum airspaces:
UL 2043 listed for heat and smoke release,
UL 1480 listed for commercial and professional
audio systemsEnvironmental RoHS, WEEE Product warranty 5 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (8.1-063016-D1) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-1311-13 36,8 cm 31,8 cm 32,1 cm 6,35 kg
