Medientechnik

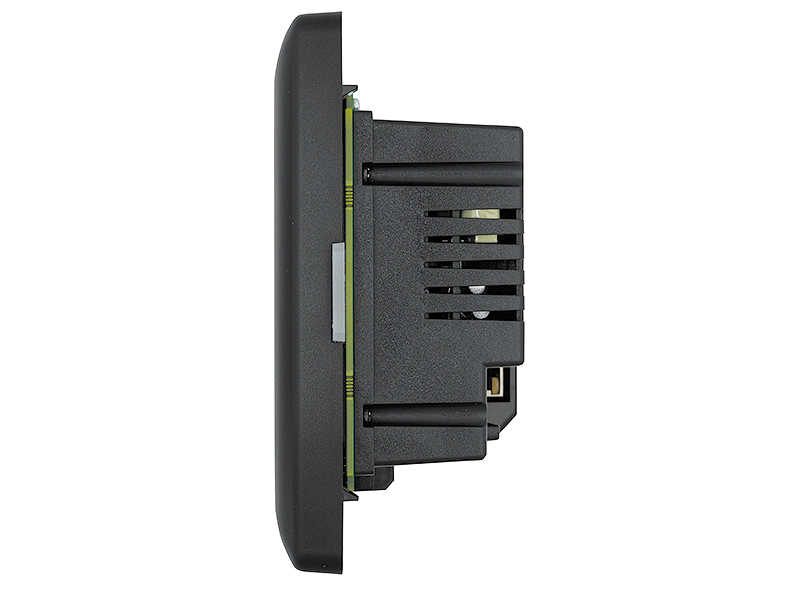

TLC Pro 521M

€ 2616.00

  • inkl. 20 % USt zzgl. Versandkosten
    zurzeit nicht lagernd:
    Lieferzeit 5-7 Tage*

    *Alle Lieferzeiten sind ungefähre Angaben und können von der tatsächlichen Lieferzeit abweichen!

Hersteller
Extron
Art.Nr.
60-1284-02
EAN
60-1284-02

Produktbeschreibung

Hauptmerkmale

  • Kapazitiver 5 Zoll-Touchscreen mit 800x480-Auflösung und 16 Millionen Farben
  • Eingebauter Steuerungsprozessor
  • Ein bidirektionaler RS-232-Anschluss
  • Zwei Relais zur Steuerung der Raumfunktionen
  • Ein serieller/IR-Anschluss zur unidirektionalen Steuerung externer Geräte
  • Ein digitaler Eingang
Modell Beschreibung der Version Teilenummer
TLC Pro 521M Controller zur Wandmontage 60-1284-02

Technische Daten

Technische Daten

TLC Pro 521M
Display
    Screen type  Active matrix TFT color display
    Size  5" (12.7 cm), measured diagonally
    Resolution  800x480
    Dot/pixel pitch  187 dpi
    Aspect ratio  Widescreen
    Color depth  24-bit, 16.7M colors
    Transparency  8 bit alpha channel
    Brightness  450 nits (cd/m2)
    Contrast  250:1
    Backlight  LED
    Viewing angle  ±70° horizontal, +50°/-70° vertical
    Touch screen  Capacitive
Memory
    SDRAM  512 MB
    Flash  512 MB
Communication — Ethernet interface
    Ethernet control/communications port  1 female RJ-45 connector
    Ethernet data rate  10/100Base-T, half/full duplex with autodetect
    Ethernet protocol  DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
    Default settings  Link speed and duplex level: autodetected
IP address = 192.168.254.252
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS: 127.0.0.1
    Program control  Extron Global Configurator Plus and Professional
Extron GUI Designer
Toolbelt
Extron Control
Communication — touchpanel
    Motion sensor  On/off
    Light sensor  On/off
Communication — Digital input
    Quantity/type  1 digital input
    Connector  (1) 3.5 mm captive screw connector, 2 pole
    Digital inputs
       Input voltage range  0 to 24 VDC, clamped at +30 VDC
       Input impedance  29k ohms
       Upper threshold  2.8 VDC
       Lower threshold  2.0 VDC
Serial control
    Quantity/type  1 bidirectional RS-232
    Connector  (1) 3.5 mm captive screw connector, 3 pole
    Baud rate and protocol  300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, odd, mark, or space parity
    Pin configuration  Pin 1 = Tx; Pin 2 = Rx; Pin 3 = Gnd
    NOTE     This port supports software flow control. The default is no flow control.
Relay control
    Quantity/type  2 normally open relays
    Relay control connectors  (1) 3.5 mm captive screw connector, 3 pole
    Pin configuration  Pin 1 = relay 1; Pin 2 = relay 2; Pin 3 = common
    Relay control contact rating  24 VDC, 1 A
IR/serial control
    Quantity/type  1 programmable: unidirectional RS-232 (±5 V),
or TTL level (0 to 5 V) infrared (carrier or non-carrier)
    Connector  (1) 3.5 mm captive screw connector, 2 pole
    Baud rate and protocol (RS-232)  300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, odd, mark, or space parity
    Pin configuration  Pin 1 = signal; Pin 2 = Gnd
    IR output carrier frequency  30 kHz to 300 kHz
Audio output
    Speaker output  1 mono, 86 dB SPL, 0.1 watt, 0.1 m, half space
    Frequency response  750 Hz to 20 kHz, ±5 dB
    Playback format(s)
       Container format  WAV (Microsoft RIFF)
       Encoding  LPCM (uncompressed)
       Bit depth  Unsigned 8-bit
Signed 16-bit
Signed 24-bit
Signed 32-bit
       Sampling rate  2 kHz to 192 kHz
       Audio channels  mono or stereo
General
    Power supply  Not included
    Power input requirements  12 VDC
or Power over Ethernet (PoE 802.3af, class 3)
   Power consumption — Power injector (XTP PI 100)
       Device  6.0 watts
       Device and power injector  8.7 watts
   Power consumption — PoE PSE
       Device  6.1 watts
   Power consumption — 12 VDC power supply (PS 1210C)
       Device  4.3 watts
       Device and power supply  5.8 watts
    Temperature/humidity  Storage: -22 to +158 °F (-30 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
    Cooling  Convection, vents on top and sides
   Thermal dissipation — Power injector (XTP PI 100)
       Device  20.2 BTU/hr
       Device and power injector  29.6 BTU/hr
   Thermal dissipation — PoE PSE
       Device  20.5 BTU/hr
   Thermal dissipation — 12 VDC power supply (PS 1210C)
       Device  14.6 BTU/hr
       Device and power supply  19.7 BTU/hr
    Mounting
       Furniture or wall mount  With included hardware
    Enclosure type  Plastic

    Enclosure dimensions
       Faceplate  6.38" W x 4.61" H x 0.59" D
(16.2 cm W x 11.7 cm H x 1.5 cm D)
       Enclosure  5.43" W x 3.74" H x 1.64" D
(13.8 cm W x 9.5 cm H x 4.2 cm D)
    Product weight  0.76 lbs (0.34 kg)
    Vibration  ISTA 1A in carton (International Safe Transit Association)
    Regulatory compliance
       Safety  CE, c-UL, UL
       EMI/EMC  CE, C-tick,FCC Class A, ICES, VCCI
       Environmental  Complies with the appropriate requirements of RoHS and WEEE.
    Product warranty  3 years parts and labor; touchpanel display and overlay components are covered for 1 year
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
(8.1-040716-D2)
Versand-Abmessung und -Gewicht
    Teilenummer Höhe Breite Tiefe Gewicht
    60-1284-02 14,1 cm 25,1 cm 15,7 cm
