Medientechnik

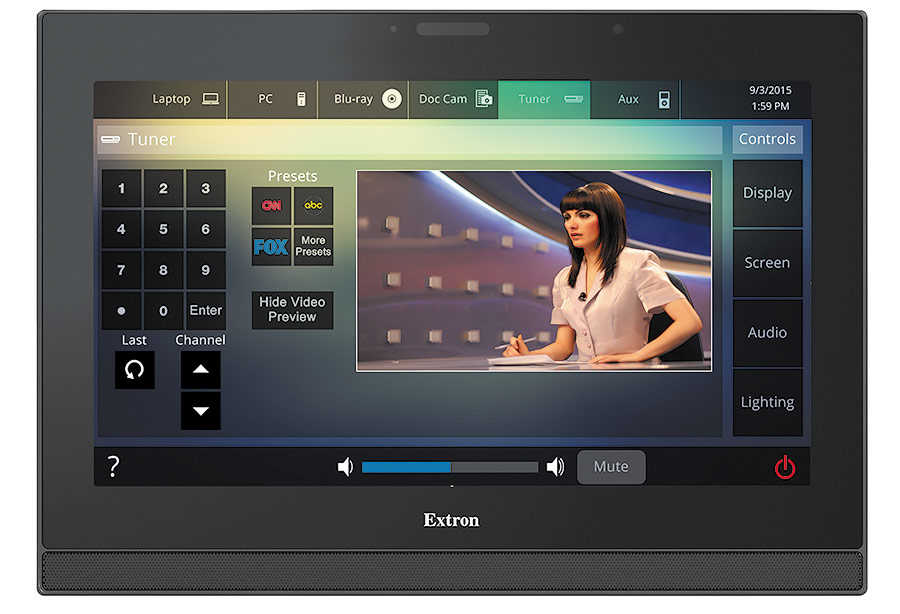

TLP Pro 1720MG

€ 6180.00

  • inkl. 20 % USt zzgl. Versandkosten
    zurzeit nicht lagernd:
    Lieferzeit 5-7 Tage*

    *Alle Lieferzeiten sind ungefähre Angaben und können von der tatsächlichen Lieferzeit abweichen!

Hersteller
Extron
Art.Nr.
60-1344-02
EAN
60-1344-02
Gewicht
6.00 kg

Produktbeschreibung

Hauptmerkmale

  • Kapazitives 17 Zoll-Touchscreen mit einer Auflösung von 1920x1080 und 16 Millionen Farben
  • Schnellerer Prozessor und größerer Speicher
  • Full-Motion-Videovorschau und Überwachung mit HDMI- und XTP-Eingängen
  • Kompatibel mit allen IP Link Pro-Steuerungsprozessoren
  • Das Touchpanel empfängt Strom und Kommunikationssignale über ein einziges Ethernet-Kabel, so dass ein lokales Netzteil nicht mehr erforderlich ist - Stromversorgungsadapter im Lieferumfang enthalten
  • Eingebaute Lautsprecher für Stereo-Audio
Modell Beschreibung der Version Teilenummer
TLP Pro 1720MG Schwarz - Wandmontage 60-1344-02

Technische Daten

Technische Daten

TLP Pro 1720MG
Display
    Screen type  Active matrix TFT color display
    Size  17.3" (44.0 cm), measured diagonally
    Resolution  1920x1080
    Dot/pixel pitch  127.7 dpi
    Aspect ratio  Widescreen
    Color depth  24-bit, 16.7 million colors
    Transparency  8 bit alpha channel
    Brightness  360 nits (cd/m2)
    Contrast  540:1
    Backlight  LED
    Viewing angle  ±80° horizontal, +60°/-80° vertical
    Touch screen  Capacitive
Memory
    SDRAM  512 MB
    Flash  512 MB
XTP – Interconnection between transmitter and receiver
    Termination standard  TIA/EIA T568A or T568B
    Signal transmission distance  330' (100m) using CAT 5e/6/7 UTP or STP cable (24 AWG or better)
       Cable requirements  Solid conductor, 24 AWG or better
       Cable recommendations  400 MHz bandwidth, STP (Shielded Twisted Pair)
Video input
    Resolution range  Up to 1920x1200*, 2K, or 1080p (HDTV)
* reduced blanking
    Number/signal type  1 HDMI (HDCP compliant)
1 XTP
    Connectors  1 female HDMI type A
1 female RJ-45 (shared with Ethernet interface)
    Horizontal frequency  18.75 kHz to 75 kHz
    Vertical frequency  24 Hz to 75 Hz
    Standards  DVI 1.0, HDMI, HDCP
    Audio sampling rate  48 kHz
Video processing
    HDMI pixel data bit depth  8, 10, or 12 bits per channel; 165 MHz pixel clock
    Colors  1 billion (10 bit processing)
Control — Touchpanel
    Motion sensor  On/off
    Light sensor  On/off
Control – Ethernet interface
    Ethernet control/communications port  1 female RJ-45 connector (shared with XTP video input)
    Ethernet data rate  100Base-T, half/full duplex with autodetect
    Protocol  DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP
    Default settings  Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.255.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1
    Software
       Configuration software  Global Configurator Plus and Professional, GUI Designer
       Programming software  Global Scripter
       Control apps  Extron Control, iGVE
       Resource management software  GlobalViewer Enterprise, iGVE
       Utilities  Toolbelt, Embedded Web page
Control — USB
    Number/signal type  2 high-speed USB 2.0 devices
    Connectors  2 USB type A connectors
    USB standards  USB 2.0, USB 1.1, USB 1.0 compatible
    USB data rates  Low speed (1.5 Mbps), full speed (12 Mbps)
Audio output – Speaker
    Speaker output  2 speakers (stereo), 86 dB SPL, 0.1 watt, 0.1 m, half space
    Frequency response  750 Hz to 20 kHz, ±5 dB
    Playback format(s)
       Container format  WAV (Microsoft RIFF)
       Encoding  LPCM (uncompressed)
       Bit depth  Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit
       Sampling rate  2 kHz to 192 kHz
       Audio channels  Mono or stereo
Audio output – Line level
    Number/signal type  1 stereo, unbalanced
    Connectors  1 female 3.5 mm stereo mini jack; tip (L), ring (R), sleeve (GND)
    Impedance  50 ohms unbalanced
    Gain error  ±0.1 dB channel to channel
    Nominal level  -10 dBV (316 mVrms)
    Maximum level (Hi-Z)  >+8.2 dBV unbalanced at 1% THD+N
    Maximum level (600 ohm)  >7.1 dBm unbalanced at 1% THD+N
General
    Power supply  PI 140 included
    Power input requirements  12 VDC
or Power over Ethernet
   Power consumption — Power injector (PI 140) with XTP
       Device  30.5 watts
       Device and power injector  36.9 watts
   Power consumption — Power supply (PS 1230)
       Device  28.3 watts
       Device and power supply  35.2 watts
    Temperature/humidity  Storage: 5 to +149 °F (-15 to +65 °C) / 10% to 90%, noncondensing
Operating: +41 to +104 °F (5 to +40 °C) / 10% to 90%, noncondensing
    Cooling  Convection, vents on top, bottom, and rear
   Thermal dissipation — Power injector (PI 140)
       Device  98.7 BTU/hr
       Device and power injector  121.0 BTU/hr
   Thermal dissipation — Power supply (PS 1230)
       Device  91.5 BTU/hr
       Device and power supply  115.0 BTU/hr
    Mounting
       Rack mount  With optional kit
       Furniture or wall mount  With included hardware or optional accessories
    Enclosure type  Plastic

    Enclosure dimensions
       Faceplate  12.4" H x 17.5" W x 2.7" D
(314 mm H x 446 mm W x 68 mm D)
       Enclosure  5.6" H x 8.8" W x 1.6" D
(142 mm H x 224 mm W x 41 mm D)
    Product weight  8.0 lb (3.63 kg)
    Vibration  ISTA 1A in carton (International Safe Transit Association)
    Regulatory compliance
       Safety  CE, c-UL, UL
       EMI/EMC  CE, C-tick,FCC Class A, ICES, VCCI
       Environmental  Complies with the appropriate requirements of RoHS and WEEE.
    Product warranty  3 years parts and labor; touchpanel display and overlay components are covered for 1 year
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
(4049_D5_053117)
