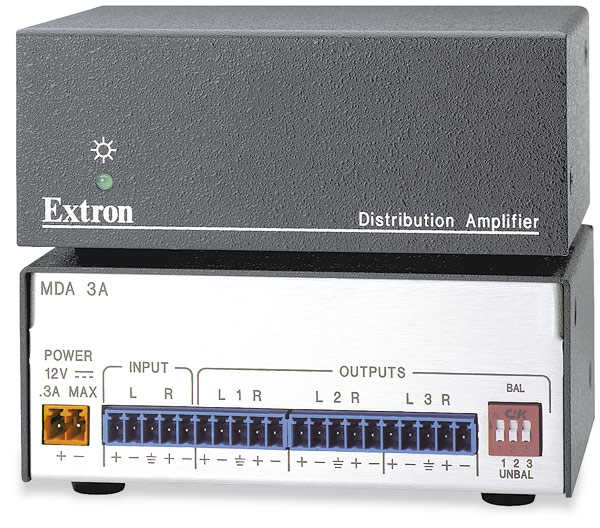

MDA 3A

Technische Daten

MDA Series
Video
Gain	Unity
Bandwidth	400 MHz (-3 dB)
Video input
Number/signal type
MDA 3V/3AV, MDA 5V	1 composite video
MDA 3V Dual	2 composite video
Connectors
MDA 3V/3AV, MDA 5V	1 female BNC
MDA 3V Dual	2 female BNC
Nominal level	1 Vp-p
Minimum/maximum levels	0.4 V to 2.0 Vp-p with no offset
Impedance	75 ohms
Return loss	<-27 dB @ 5 MHz
DC offset (max. allowable)	5.0 V
Input coupling	AC
Video output
Number/signal type
MDA 3V/3AV	3 buffered composite video
MDA 3V Dual	2 x 3 buffered composite video
MDA 5V	6 composite video: 5 buffered for distribution, 1 passive loop-through
Connectors
MDA 3V/3AV	3 female BNC
MDA 3V Dual	6 female BNC
MDA 5V	6 female BNC
Nominal level	1 Vp-p
Minimum/maximum levels	0.4 V to 2.0 Vp-p, follows input
Impedance	75 ohms
Return loss	<-30 dB @ 5 MHz
DC offset	±50 mV with input at 0 offset
Sync
Standards	NTSC 3.58, NTSC 4.43, PAL, SECAM
Audio — MDA 3AV, MDA 3A/3A RCA, MDA 5A RCA
Gain
Frequency response	20 Hz to 20 kHz, ±0.05 dB
THD + Noise	0.03% @ 1 kHz at nominal level
S/N
MDA 3A/5A RCA	>90 dB, unbalanced, at maximum output
All other models w/audio	>90 dB, balanced at maximum output
Stereo channel separation	>80 dB @ 1 kHz; >60 dB @ 20 kHz
CMRR	>75 dB @ 20 Hz to 20 kHz
Audio input — MDA 3AV, MDA 3A/3A RCA, MDA 5A RCA
Number/signal type
MDA 3A RCA, MDA 5A RCA	1 stereo unbalanced
MDA 3AV, MDA 3A	1 stereo balanced/unbalanced
Connectors
MDA 3A RCA, MDA 5A RCA	2 RCA connectors
MDA 3AV, MDA 3A	(1) 3.5 mm captive screw connector, 5 pole
Impedance
MDA 3A RCA, MDA 5A RCA	>10k ohms unbalanced, DC coupled
MDA 3AV, MDA 3A	>50k ohms unbalanced, >25k ohms balanced, DC coupled
Nominal level	+4 dBu (1.23V), 0 dBu (0.775 V), -10 dBV (316 mV), -20 dBV (100 mV) compatible
Maximum level
MDA 3A/5A RCA	+17 dBu (unbalanced) at 1%THD+N
All other models w/audio	+24 dBu (balanced) at 1%THD+N
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu
Audio output — MDA 3AV, MDA 3A/3A RCA, MDA 5A RCA
Number/signal type
MDA 5A RCA	5 stereo, unbalanced
MDA 3A RCA	3 stereo, unbalanced
MDA 3AV, MDA 3A	3 stereo, balanced/unbalanced
Connectors
MDA 5A RCA	10 RCA connectors
MDA 3A RCA	6 RCA connectors
MDA 3AV, MDA 3A	(3) 3.5 mm captive screw connectors, 5 pole
Impedance
MDA 3A RCA, MDA 5A RCA	50 ohms unbalanced
MDA 3AV, MDA 3A	50 ohms unbalanced, 100 ohms balanced
Gain error	±0.1 dB channel to channel
Maximum level (Hi-Z)
MDA 3A/5A RCA	+15 dBV, unbalanced, at 1%THD+N
All other models w/audio	>+24 dBu, balanced at 1%THD+N
Maximum level (600 ohm)
MDA 3A/5A RCA	>+14 dBm, unbalanced, at 1%THD+N
All other models w/audio	>+15 dBm, balanced or unbalanced, at 1%THD+N
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5A, 6 watts
Power input requirements
MDA 3V, MDA 5V	12 VDC, 0.1 A (max.)
MDA 3AV	12 VDC, 0.3 A (max.)
All other models	12 VDC, 0.2 A (max.)
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional mini under-desk mount kit
Pole mount	Yes, with optional projector pole mount kit
Enclosure type	Metal
Enclosure dimensions	1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) (4.2 cm H x 11.0 cm W x 7.6 cm D) (Depth excludes connectors and knobs.)
Product weight
MDA 3V	0.4 lbs (0.2 kg)
MDA 3V Dual	0.7 lbs (0.3 kg)
MDA 3AV	0.6 lbs (0.3 kg)
MDA 5V	0.5 lbs (0.2 kg)
MDA 3A	0.5 lbs (0.2 kg)
MDA 3A/5A RCA	0.4 lbs (0.2 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance	CE, c-UL UL, CE, C-tick, FCC Class A, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4475-101518-D17)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-440-01	6,2 cm	18,1 cm	24,1 cm	0,78 kg
