MDA 4V EQ

Technische Daten

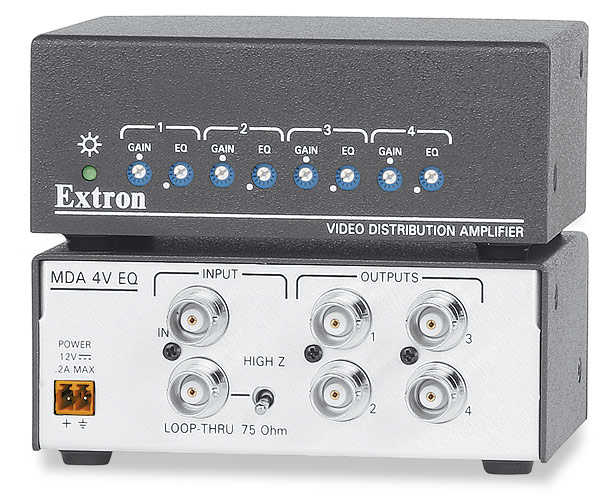

MDA 4V EQ
Video
Gain	-1 dB to +3 dB (x 0.9 to x 1.4), adjustable per output
Equalization	0 dB to +6 dB (x 1 to x 2) at 5 MHz, adjustable per output*
Bandwidth	150 MHz (-3 dB)
Output cable driving distance	Up to 1000 feet with Mini HR cable; up to 1500 feet with RG6 or RG59 cables
Video input and loop through
Number/signal type	1 composite video input, 1 passive composite video passive loop-through
Connectors	1 female BNC (input), 1 female BNC (loop-through)
Nominal level	1 Vp-p
Minimum/maximum levels	0.4 V to 2 Vp-p with no offset at unity gain
Impedance	75 ohms
Return loss	<-30 dB @ 5 MHz
DC offset (max. allowable)	4.0 V, AC coupled
Video output
Number/signal type	4 composite video
Connectors	4 female BNC
Nominal level	1 Vp-p
Minimum/maximum levels	0.4 V to 2 Vp-p
Impedance	75 ohms
Return loss	<-30 dB @ 5 MHz
Sync
Standards	NTSC 3.58, NTSC 4.43, PAL, SECAM
General
External power supply	100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 0.5 A, regulated
Power input requirements	12 VDC, 0.2 A
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional under-desk mounting kit
Pole mount	Yes, with optional mini projector mounting kit or multi-product projector mounting kit
Enclosure type	Metal
Enclosure dimensions	1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) (4.3 cm H x 10.9 cm W x 7.6 cm D) (Depth excludes connectors.)
Product weight	0.7 lbs (0.3 kg)
Regulatory compliance	CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4463-D1)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-697-01	7,6 cm	19,1 cm	26,7 cm	0,77 kg
