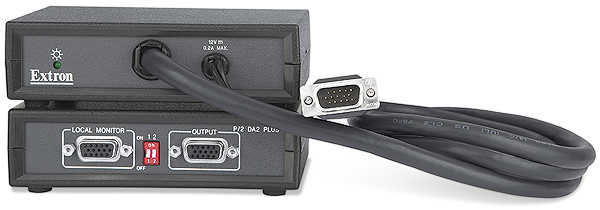

P/2 DA2 PLUS
EUR
184.80
€ 184.80
Hersteller
Extron
Art.Nr.
60-046-03
EAN
60-046-03
Produktbeschreibung
Hauptmerkmale
- 300 MHz (-3dB) RGB video bandwidth, fully loaded
- Compatible with VGA-QXGA resolutions
- Both outputs are individually buffered
- Routes all video card ID bits through the local monitor output to allow for automatic resolution selection by DDC1 and DDC2 plug and play cards and projectors
- DIP-switch selectable input and output sync impedance
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
P/2 DA2 PLUS | 1x2 VGA | 60-046-03 |
Technische Daten
Technische Daten
-
P/2 DA2 Plus Video Gain Unity Peaking Fixed Bandwidth 300 MHz (-3 dB) Video input Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter) Connectors 1 male 15-pin HD cable (built-in) Pin connections ID bits on pins 4, 11, 12, and 15 are passed through to local monitor output (loop-through).
Pin 9 is floating.Nominal level 1.0 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component videoMinimum/maximum levels Analog: 0.4 V to 1.4 Vp-p with no offset at unity gain Impedance 75 ohms Horizontal frequency 15 kHz to 135 kHz Vertical frequency 30 Hz to 170 Hz Return loss <-38 dB @ 5 MHz Video output Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video (with adapter)
1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs local monitor output/loop-through (ID bits are passed through.)Connectors 2 female 15-pin HD Nominal level 1.0 Vp-p for Y of component video
0.7 Vp-p for RGB and for R-Y and B-Y of component videoMinimum/maximum levels 0.4 V to 1.4 Vp-p (follows input) Impedance 75 ohms Return loss -41 dB @ 5 MHz DC offset ±5 mV maximum with input at 0 offset Sync Input type RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync Output type RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync Input level Analog or TTL, 1.7 V to 5 Vp-p Output level TTL: 0-5 Vp-p, unterminated Input impedance 510 ohms (default) or 10k ohms, selectable Output impedance 25 ohms (default) or 50 ohms, selectable Max. propagation delay 60 ns Max. rise/fall time 4 ns Polarity Positive or negative (follows input) General Attached external power supply 100 VAC to 240 VAC, 50-60 Hz, 4.5 watts, external; to 12 VDC, 1 A, regulated Power input requirements 12 VDC, 0.2 A Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount No Enclosure type Plastic Enclosure dimensions 1.5" H x 5.0" W x 2.5" D
(3.8 cm H x 12.7 cm W x 6.4 cm D)
(Depth excludes connectors.)Product weight 1.6 lbs (0.7 kg) Shipping weight 3 lbs (2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (7.6-082709-D12) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-046-03 6,4 cm 22,2 cm 31,3 cm 1,0 kg
