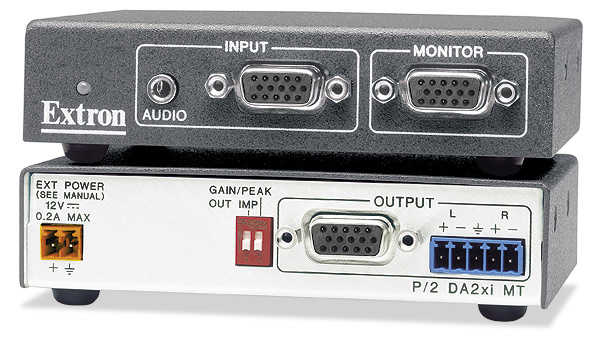

P/2 DA2xi MT
EUR
422.40
€ 422.40
Hersteller
Extron
Art.Nr.
60-506-21
EAN
60-506-21
Gewicht
1 kg
Produktbeschreibung
Hauptmerkmale
- 350 MHz (-3 dB) RGB-Bandbreite, Volllast
- Level- und Peaking einstellbar
- Aktive PC-/Audioschnittstelle
- Stromversorgung über VGA-Anschluss des Computers (Stift 9) oder externes Netzteil
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
P/2 DA2xi MT | 1x2 VGA-QXGA mit Audio | 60-506-21 |
Technische Daten
Technische Daten
-
P/2 DA2xi MT Video Gain Output: 0 dB or 0.6 dB, selectable
Local monitor output: unityPeaking Output: selectable, 0 dB or 0.6 dB at 100 MHz
Local monitor output: fixedBandwidth 350 MHz (-3 dB) Video input Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs Connectors (1) 15-pin HD female Nominal level 0.7 Vp-p for RGB Minimum/maximum levels Analog, 0.3 V to 1.5 Vp-p with no offset at unity gain Impedance 75 ohms Horizontal frequency 15 kHz to 135 kHz Vertical frequency 30 Hz to 170 Hz Return loss <-38 dB @ 5 MHz DC offset (max. allowable) 1.0 V Input coupling DC Video output Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs output
1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs local monitor loop-through (I.D. bits are passed through.)Connectors (2) 15-pin HD female Nominal level 0.7 Vp-p for RGB at unity gain Minimum/maximum levels Analog, 0.3 V to 1.5 Vp-p (follows input) Impedance 75 ohms Return loss <-40 dB @ 5 MHz DC offset ±5 mV with input at 0 offset Sync Input type RGBHV, RGBS, RGsB, RsGsBs Output type RGBHV, RGBS, RGsB, RsGsBs Input level 1.5 V to 5.0 Vp-p Output level TTL, 5 Vp-p, unterminated Input impedance 510 ohms (fixed) Output impedance 75 ohms or 50 ohms, selectable Max. propagation delay 60 ns Max. rise/fall time 4 ns Polarity Positive or negative (follows input) Audio Gain Unbalanced output: 0 dB; balanced output: +6 dB Frequency response 20 Hz to 20 kHz, +0.05 dB, -0.1 dB THD + Noise 0.03% @ 1 kHz at nominal level S/N >90 dB (balanced) at maximum output Crosstalk <-80 dB @ 1 kHz, fully loaded Stereo channel separation >80 dB @ 1 kHz, >60 dB @ 20 kHz CMRR >67 dB @ 20 Hz to 20 kHz Audio input Number/signal type 1 stereo, unbalanced Connectors (1) 3.5 mm stereo jack, female; tip (L), ring (R), sleeve (GND) Impedance >18k ohms unbalanced, DC coupled Nominal level -10 dBV (316 mV) Maximum level >+10 dBV (3.16 V) (unbalanced) at 1%THD+N NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output Number/signal type 1 stereo, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±0.1 dB channel to channel Nominal level -2 dBu (632 mV) balanced output
-10 dBV (316 mV) unbalanced outputMaximum level (Hi-Z) >+15 dBu (4.36 V), balanced at 1% THD+N, with external power supply Maximum level (600 ohms) >+9 dBm (2.18 V), balanced at 1% THD+N, with external power supply General Power External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 watts, regulatedPower input requirements 12 VDC, 0.2 A Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount Yes, with optional 1U rack shelf Furniture mount Yes, with included under-desk mount kit or optional through-desk mount kit Pole mount Yes, with optional pole mount kit Enclosure type Metal Enclosure dimensions 1.0" H x 4.3" W x 3.0" D (quarter rack wide)
(2.5 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors.)Product weight 0.5 lbs (0.3 kg) Shipping weight 3 lbs (2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, KCC, VCCI Environmental Complies with the appropriate requirements of RoHS, WEEE Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (8.1-062314-D9) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-506-21 6,4 cm 22,2 cm 31,3 cm 0,95 kg
