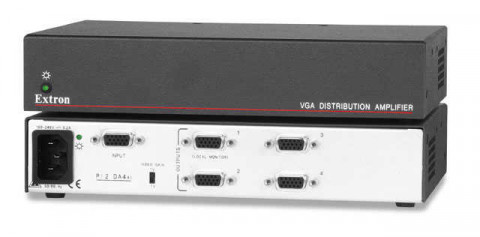

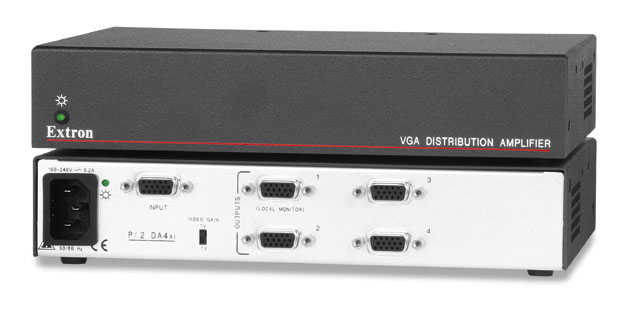

P/2 DA4xi
EUR
448.80
€ 448.80
Hersteller
Extron
Art.Nr.
60-246-03
EAN
60-246-03
Gewicht
2 kg
Produktbeschreibung
Hauptmerkmale
- 300 MHz (-3 dB) RGB-Videobandbreite, Volllast
- Kompatibel mit VGA-QXGA-Auflösungen
- Für Entfernungen bis zu 75 Meter
- Schalter für Videoverstärkung
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
P/2 DA4xi | 1x4 VGA | 60-246-03 |
Technische Daten
Technische Daten
-
P/2 DA4xi, P/2 DA6xi Video Gain 0 dB or +3 dB (when input is 0.7 Vp-p, output is 0.7 V or 1.0 V), switchable Bandwidth 350 MHz (-3 dB), fully loaded Video input Number/signal type 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video NOTE These DAs are compatible with all the signal formats listed above when the gain DIP switch is set to 0.7 V. They are compatible with only RGBHV and RGBS when the gain DIP switch is set to 1.0 V. Connectors 1 female 15-pin HD (optional Mac/VGA adapters are available) Pin connections ID bits on pins 4, 11, 12, and 15 are passed through to local monitor output (loop-through).
The pin 9 connection is passed through to output 1.Nominal level 1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-videoMinimum/maximum levels Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain Impedance 75 ohms Horizontal frequency 15 kHz to 135 kHz Vertical frequency 30 Hz to 150 Hz Return loss <-40 dB @ 5 MHz Input coupling DC Video output Number/signal type P/2 DA4xi 4 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (follows input type) P/2 DA6xi 6 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video (follows input type) NOTE These DAs are compatible with all the signal formats listed above when the gain DIP switch is set to 0.7 V. They are compatible with only RGBHV and RGBS when the gain DIP switch is set to 1.0 V. Connectors P/2 DA4xi 4 female 15-pin HD P/2 DA6xi 6 female 15-pin HD Nominal level 1.0 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-videoMinimum/maximum levels 0.3 V to 1.5 Vp-p (follows input) Impedance 75 ohms Return loss <-40 dB @ 5 MHz DC offset ±5 mV with input at 0 offset Sync Input type RGBHV, RGBS, RGsB, RsGsBs; bi-level and tri-level sync Output type RGBHV, RGBS, RGsB, RsGsBs; bi-level and tri-level sync (follows input) NOTE These DAs are compatible with all the signal formats listed above when the gain DIP switch is set to 0.7 V. Input level 1.8 V to 5.0 Vp-p Output level TTL: 5.0 Vp-p, unterminated Input impedance 510 ohms Output impedance 50 ohms Max. propagation delay 60 ns Max. rise/fall time 2 ns Polarity Positive or negative (follows input) General Power Internal
100-240 VAC, 50-60 Hz, 12 wattsTemperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount Yes, with optional 1U rack shelf Furniture mount Yes, with optional under-desk mounting kit or through-desk mounting kit Enclosure type Metal Enclosure dimensions 1.6" H x 8.7" W x 6.0" D (1U high, half rack wide)
(4.1 cm H x 22.1 cm W x 15.2 cm D)
(Depth excludes connectors.)Product weight 2.0 lbs (0.9 kg) Shipping weight 3 lb (2 kg) DIM weight USA/Canada 3.7 lbs (1.7 kg) International 4.3 lbs (2.0 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, KCC, VCCI Environmental Complies with the appropriate requirements of RoHS, WEEE Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (8.1-062314-D14) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-246-03 15,2 cm 30,5 cm 35,6 cm 1,22 kg
