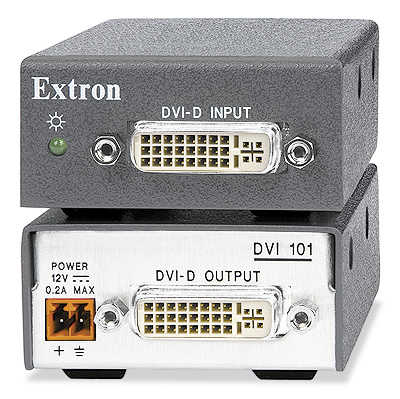

DVI 101

Extron

DVI 101

DVI 101

€ 384.00

  • inkl. 20 % USt zzgl. Versandkosten
    zurzeit nicht lagernd:
    Lieferzeit 5-7 Tage*

    *Alle Lieferzeiten sind ungefähre Angaben und können von der tatsächlichen Lieferzeit abweichen!

↖ Weitere Geräteinformationen
Hersteller
Extron
Art.Nr.
60-873-01
EAN
60-873-01

Produktbeschreibung

Hauptmerkmale

  • Verlängert DVI-Signale über DVI-Kabel bis zu 60 m
  • Unterstützt Computervideo bis zu 1920x1200, einschließlich HDTV 1080p/60 und 2K
  • Single Link DVI-kompatibel
  • HDCP-konform
  • Automatische Kabelkompensation am Eingang
  • Stromversorgung durch das Quellengerät bei Distanzen bis zu 38 m
Modell Beschreibung der Version Teilenummer
DVI 101 DVI-Kabelequalizer 60-873-01

Technische Daten

Technische Daten

DVI 101
Video
    Maximum data rate  4.95 Gbps (1.65 Gbps per color)
    Maximum pixel clock  165 MHz
    Resolution range  Up to 1920x1200 or 1080p @ 60 Hz
    Formats  RGB and YCbCr digital video
    Standards  DVI 1.0, HDMI 1.2
Video input
    Number/signal type  1 single link DVI-D (or HDMI*)
    Connectors  1 female DVI-I
    Input cable length  Up to 200' (61 m) at 1920x1200 or 1080p @ 60 Hz
Up to 250' (76 m) at 1024x768, 720p, or 1080i @ 60 Hz
Longer distances are possible with lower rates and/or high quality cable.
    NOTE     The transmission distance varies greatly depending on the signal resolution and on the type of cable, graphic card, and display used in the system.
    NOTE     *Appropriate DVI-D to HDMI cables or adapters are required for HDMI signal input/output.
    Equalization  Automatic for up to -40 dB of cable loss
Video output
    Number/signal type  1 single link DVI-D (or HDMI*)
    Connectors  1 female DVI-I
    Output cable length  Up to 15' (5 m)
General
    Power  Supplied by an external power supply or by the 5 V signal from a DVI source (pin 14) or an HDMI source (pin 18)
    Power supply  External
Input: 100-240 VAC, 50/60 Hz
Output: 12 VDC, 0.5 A, 6 watts
    Power input requirements  12 VDC, 0.2 A from an external power supply or
5 VDC, 0.05 A from a DVI source or an HDMI source
    Temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
    Cooling  Convection, no vents
    Mounting
       Rack mount  Yes, with optional rack mounting kit
       Furniture mount  Yes, with optional rack mounting kit
    Enclosure type  Metal
    Enclosure dimensions  1.0" H x 2.2" W x 3.0" D (one-eighth rack wide)
(2.5 cm H x 5.6 cm W x 7.6 cm D)
    Product weight  0.4 lbs (0.2 kg)
    Regulatory compliance  CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI
    Product warranty  3 years parts and labor
    Everlast power supply warranty  7 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
(4350-D8)
Versand-Abmessung und -Gewicht
    Teilenummer Höhe Breite Tiefe Gewicht
    60-873-01 6,2 cm 18,1 cm 24,1 cm 0,64 kg
