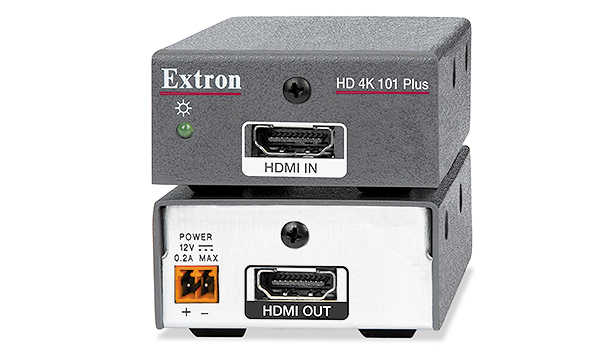

HD 4K 101 Plus
EUR
360.00
€ 360.00
Hersteller
Extron
Art.Nr.
60-1621-01
EAN
60-1621-01
Produktbeschreibung
Hauptmerkmale
- Überträgt 4K-Videosignale bis zu 23 m und HD-Signale bis zu 53 m mit Kabeln der Extron HDMI Pro-Serie
- Unterstützt Computer- und Videoauflösungen bis zu 4K/60 mit 4:4:4
- Unterstützt HDMI 2.0b-Spezifikationen, einschließlich Datenraten bis zu 18 Gbps, HDR, Deep Color bis zu 12 Bit, 3D, verlustfreier HD-Audioformate und CEC-Durchleitung
- HDCP 2.2-konform
- Automatische Kabelkompensation am Eingang
- Stromversorgung direkt über die HDMI-Quelle möglich
| Modell | Beschreibung der Version | Teilenummer | |
|---|---|---|---|
| HD 4K 101 Plus | 4K/60 HDMI-Kabelequalizer | 60-1621-01 |
Technische Daten
Technische Daten
-
HD 4K 101 Plus
SPECIFICATION
Frame rate 1 24, 25, 30, 50, or 60 fps Chroma sampling 1 4:4:4, 4:2:2, or 4:2:0 Color bit depth 1 8, 10, or 12 bits per color Signal type HDMI 2.0b, HDCP 1.4 and 2.2 Max. video data rate 18.0 Gbps (6.0 Gbps per color) NOTE 1Subject to the maximum data rate limit. Use our calculator (https://www.extron.com/product/videotools.aspx) to determine video parameters supported by this data rate. Video Maximum data rate 18 Gbps (6.0 Gbps per color) Maximum pixel clock 600 MHz Resolution range Up to 4096x2160 @ 60 Hz (4K),
3840x2160 @ 60 Hz (UHD), 1920x1200
or 1080p @ 60 HzFormats RGB and YCbCr digital video Standards DVI 1.0, HDMI 2.0b, HDCP 1.4 and 2.2 Impedance 100 ohms Input video signal 1.2 Vp-p (TMDS) Input DDC signal 5 Vp-p (TTL) Video input Number/signal type 1 single link HDMI (DVI*) Connectors 1 female HDMI type A Input cable length 4096x2160 @ 60 Hz 35' (10 m) 3840x2160 @60 Hz 50' (15 m) 4K/UHD @ 30 Hz 75' (23 m) 1080p, 1080i, 1920x1200, 1600x1200, 1280x1024 @ 60 Hz 125' (38 m) 1080p, 1920x1080 @ 24/30 Hz 150' (46 m) 1080i, 720p, 1280x1024, 1024x768 @ 60 Hz 150' (46 m) 720p @30 Hz 175' (53 m) NOTE The transmission distance varies greatly depending on the signal resolution and on the type of cable, source, and display used in the system. NOTE *Appropriate HDMI to DVI cables or adapters are required for DVI signal input/output. Video output Number/signal type 1 single link HDMI (or DVI*) Connectors 1 female HDMI type A Output cable length Up to 12' (3.6 m) General Power supply External (optional); product can be powered by source via pin 18
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 wattsPower consumption Device 0.8 W Device and power supply 1.4 W Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Thermal dissipation Device 1.6 BTU/HR Device and power supply 3.4 BTU/HR Mounting Yes, with optional mounting brackets Enclosure type Metal Enclosure dimensions 1.0" H x 2.2" W x 3.0" D (1/8 rack wide)
(2.5 cm H x 5.6 cm W x 7.6 cm D)
(Depth excludes connectors.)Product weight 0.1 lbs (<0.1 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-Tick, FCC Class A, ICES, VCCI Environmental Complies with the appropriate requirements of RoHS, WEEE Product warranty 3 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (3730-080116-D5)
