FPC 6000
EUR
10308.00
Preis auf Anfrage
Hersteller
Extron
Art.Nr.
60-1706-01
EAN
60-1706-01
Gewicht
6 kg
Produktbeschreibung
Hauptmerkmale
- Zur Verwendung mit den Extron-Kreuzschienen FOX Matrix 320x und FOX Matrix 14400
- Intuitives, menügesteuertes, farbiges 15 Zoll-Touchscreen zur Steuerung
- Überwachung, Zugang und Verwaltung aller Einrichtungs- und Steuerungsfunktionen aus der Ferne
- Ethernet-Funktionen zur Steuerung der Kreuzschiene von einem oder mehreren Standorten aus über ein Local Area Network (LAN)
- Steuerung mehrerer Kreuzschienen
- Globale Voreinstellungen
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|

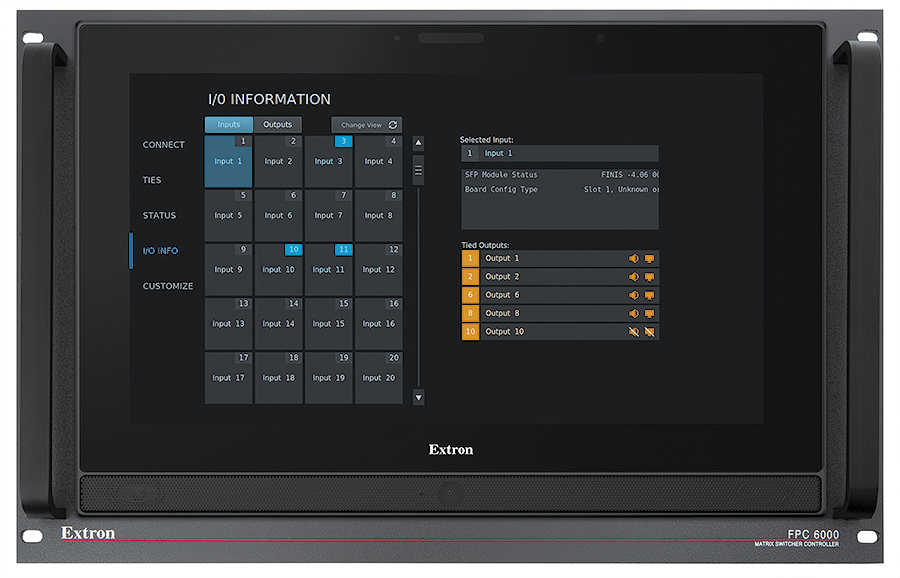

FPC 6000 | 15 Zoll-Touchscreen, Rackmontage, 7 HE | 60-1706-01 |
Technische Daten
Technische Daten
-
FPC 6000 Display Screen type Active matrix TFT color display Size 15.6" (39.5 cm), measured diagonally Resolution 1366x768 Pixel density 100 PPI Aspect ratio 16:9 Color depth 24-bit, 16.7M colors Transparency 8 bit alpha channel Brightness 270 nits (cd/m2) Contrast 475:1 Backlight LED Viewing angle ±85° horizontal, ±80° vertical Touch screen Capacitive Memory SDRAM 512 MB Flash 512 MB Control — Touchpanel Motion sensor On/off Light sensor Auto/manual Ethernet Connectors 1 female RJ-45 connector Data rate 100Base-T, half/full duplex with autodetect Protocols DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP Default settings Link speed and duplex level: autodetected
IP address = 192.168.254.251
Subnet mask = 255.255.0.0
Default gateway = 0.0.0.0
DHCP = off
DNS = 127.0.0.1Utilities Embedded Web page Audio output – Speaker Speaker output 2 speakers (stereo), 86 dB SPL, 0.1 watt, 0.1 m, half space Frequency response 750 Hz to 20 kHz, ±5 dB General Power supply Power over Ethernet Plus (PoE+ IEEE 802.3at) power injector provided Power input requirements Power over Ethernet Plus (provided)
or 12 VDC, 3 A (sold separately)Power consumption — Power injector (PI 140) Device 16.2 watts Device and power injector 18.6 watts Power consumption — Power supply (PS 124) Device 13.8 watts Device and power supply 16.1 watts Temperature/humidity Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensingCooling Convection, vents on top, bottom, and rear Thermal dissipation — Power injector (PI 140) Device 55.3 BTU/hr Device and power injector 63.2 BTU/hr Thermal dissipation — Power supply (PS 124) Device 47.0 BTU/hr Device and power supply 54.9 BTU/hr Mounting Rack mount With optional kit Furniture or wall mount With included hardware or optional accessories Enclosure type Plastic Enclosure dimensions Faceplate 11.0" H x 16.1" W x 1.1" D
(280 mm H x 408 mm W x 29 mm D)Enclosure 5.6" H x 8.8" W x 1.6" D
(142 mm H x 224 mm W x 41 mm D)Product weight 12.50 lbs (5.67 kg) FPC 6000 with rack mount Regulatory compliance CE, C-tick, c-UL, FCC Class A, ICES, RoHS, VCCI, WEEE, UL Product warranty 3 years parts and labor; touchpanel display and overlay components are covered for 1 year NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. NOTE Shipping dimensions and weights are available at www.extron.com. (4246-D1-041818) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-1706-01 16,5 cm 58,4 cm 44,8 cm
