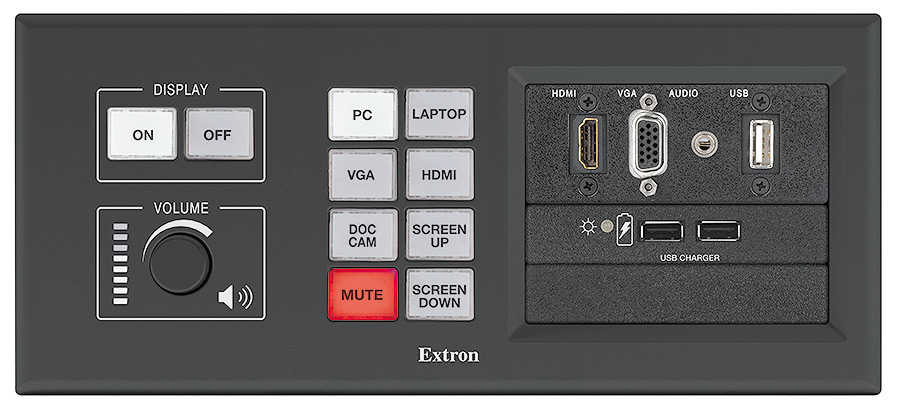

MLC Plus 200 AAP

€ 1248.00

  • inkl. 20 % USt zzgl. Versandkosten
    zurzeit nicht lagernd:
    Lieferzeit 5-7 Tage*

    *Alle Lieferzeiten sind ungefähre Angaben und können von der tatsächlichen Lieferzeit abweichen!

Hersteller
Extron
Art.Nr.
60-1541-02
EAN
60-1541-02

Produktbeschreibung

Hauptmerkmale

  • Verwaltet, überwacht und steuert AV?Geräte über ein standardmäßiges Ethernet-Netzwerk
  • Voll konfigurierbar mit Global Configurator Plus und Global Configurator Professional
  • Zwei bidirektionale serielle RS?232-Anschlüsse
  • Zwei Relais zur Steuerung der Raumfunktionen
  • Ein IR-Anschluss für bis zu zwei Emitter
  • Ein digitaler Eingang
Modell Beschreibung der Version Teilenummer
?MLC Plus 200 AAP ?Frontblenden in Schwarz und Weiß, 5 Gang AAP 60-1541-02

Technische Daten

Technische Daten

MLC Plus 200 AAP
Memory
    SDRAM  512 MB
    Flash  512 MB
Software and control options
    Software  Extron Global Configurator Plus and Professional for Windows®
    Control options  GlobalViewer®, Extron Control for Web, Extron Control for iPad®
Ethernet control
    Network interface controllers (NICs)  1
    Connector  1 female RJ-45 connector
    Data rate  10/100/1000Base-T, half/full duplex with autodetect
    Protocols  DHCP, DNS, HTTP, HTTPS, ICMP, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
    Default settings  Link speed and duplex level = autodetected
IP address = 192.168.254.250
Subnet mask = 255.255.255.0
Gateway = 0.0.0.0
DHCP = off
DNS: 127.0.0.1
Serial control
    Quantity/type  2 bidirectional RS-232
    Connectors  (2) 3.5 mm captive screw connectors, 3 pole
    Baud rate and protocol  300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits;
no parity (default), even, odd, mark, or space parity
    NOTE     These ports support software flow control. The default is no flow control.
    Pin configurations
       Serial, 3-pole captive screw  Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital input control
    Quantity/type  1 digital input
    Connectors  (1) 3.5 mm captive screw connector, 2 pole
    Digital input
       Input voltage range  0 to 24 VDC, clamped at +30 VDC
       Input impedance  17.5k ohms
       Programmable pullup  1k ohms to +5 VDC
       Threshold low to high  >2.8 VDC
       Threshold high to low  <2.0 VDC
    Pin configurations  1 = digital input, 2 = Gnd
IR control
    Quantity/type  1 TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
    Connectors  (1) 3.5 mm captive screw connector, 2-pole
    Pin configurations  Pin 1 = signal, 2 = Gnd
    IR output carrier frequency  30 kHz to 300 kHz
Relay control
    Quantity/type  2 normally open relays
    Relay control connectors  (1) 3.5 mm captive screw connector, 3 pole
    Relay control contact rating  24 VDC, 1 A
Volume control
    Quantity/type  1 volume control (compatible with select Extron amplifiers)
    Connectors  (1) 3.5 mm captive screw connector, 3 pole
    Pin configuration  Pin 1 = ?10 VDC reference voltage input, pin 2 = 0 to +10 VDC control voltage output, pin 3 = Gnd
    Control voltage output range  0 to +10 VDC (±0.2 volts), adjustable
General
    Power supply  Not included
    Power input requirements  12 VDC, 1 A, 12 watts, max.
Or power over Ethernet (PoE) (complies with PoE 802.3af, class 3)
    Power consumption
       Device  2.2 watts, 12 VDC
4.0 watts, 48 VDC (PoE)
       Device and power supply  3.2 watts, 100-240 VAC, 50-60 Hz
       Device and PoE injector  5.3 watts, 100-240 VAC, 50-60 Hz
    Temperature/humidity  Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
    Cooling  Convection, no vents
    Thermal dissipation
       Device  7.4 BTU/hr (using 12 VDC)
13.6 BTU/hr (using 48 VDC, PoE)
       Device and power supply  11.0 BTU/hr
       Device and PoE injector  18.0 BTU/hr
    Mounting
       Rack mount  No
       Furniture or wall mount  Yes, in a standard US 5-gang electrical junction box or mud ring
    Enclosure type  Plastic faceplate and high-impact plastic rear enclosure
    Enclosure dimensions
       Faceplate  4.5" H x 10.0" W x 0.3" D (11.4 cm H x 25.5 cm W x 0.8 cm D)
       Device  2.7" H* x 5.2" W x 2.2" D (6.9 cm H* x 13.2 cm W x 5.5 cm D)
(Depth excludes faceplate and buttons. Fits most 5 gang US boxes or mud rings. Allow at least 2.4" [6.1 cm] depth in the wall or furniture.)

    Product weight  1.0 lb (0.5 kg)
    Shipping weight  3 lbs (1 kg)
    Vibration  ISTA 1A in carton (International Safe Transit Association)
   Regulatory compliance
       Safety  CE, c-UL, UL
       EMI/EMC  CE, C-tick, FCC Class A, ICES, VCCI class A
       Environmental  Complies with the appropriate requirements of RoHS, WEEE
       Accessibility  Complies with the appropriate requirements of Section 508 of the Rehabilitation Act (29 U.S.C. 794d).
    Product warranty  3 years parts and labor
    NOTE     All nominal levels are at ±10%.
    NOTE     Specifications are subject to change without notice.
(8.1-061215-D2)
Versand-Abmessung und -Gewicht
    Teilenummer Höhe Breite Tiefe Gewicht
    60-1541-02 9,5 cm 26,0 cm 20,3 cm 0,86 kg
