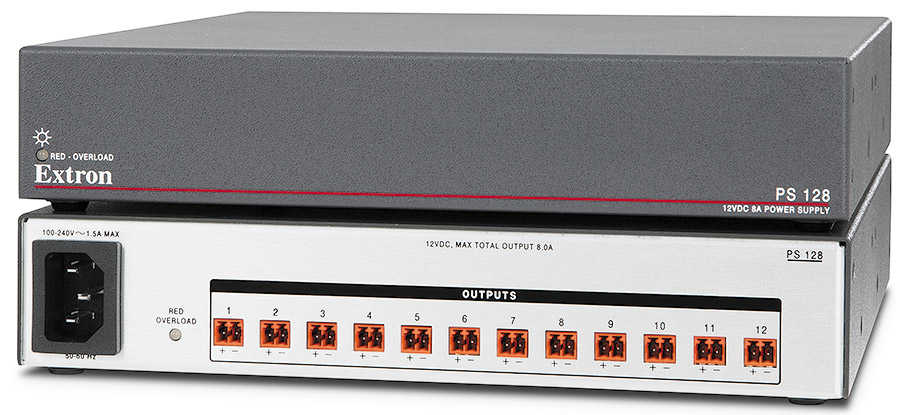

PS 128

Technische Daten

PS 128
General
Power output	12 VDC, regulated; 8 A maximum; 96 watts, total for all 12 outputs
NOTE     Maximum output current is rated at an ambient temperature of 40 °C.
Power input	100 VAC to 230 VAC, 50-60 Hz
No load	6.6 watts at 115 VAC 5.8 watts at 230 VAC
Full power	109.0 watts at 115 VAC 106.4 watts at 230 VAC
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation	44.5 BTU/hr
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional under-desk mounting kit
Pole mount	Yes, with optional mounting kit
Enclosure type	Metal
Enclosure dimensions	1.66" H x 8.68" W x 10.0" D (1U high, half rack wide) (4.2 cm H x 22.1 cm W x 21.6 cm D) (Depth excludes connectors.)
Product weight	3 lbs (1.4 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, NEC section 300.22 (C), UL Meets UL 60950-1 and IEC 60950-1
EMI/EMC	CE, CISPR 22 Class B, C-tick, EN55022 Class B, FCC Class B, ICES Class B, VCCI Class B
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4098-D2)
