MTP R AV und MTP R AV RCA
EUR
278.40
€ 278.40
Hersteller
Extron
Art.Nr.
60-541-51
EAN
60-541-51
Produktbeschreibung
Hauptmerkmale
- Empfängt FBAS-Video- und Audiosignale bis zu 300 m über ein einzelnes CATx-Kabel
- Aktiver, symmetrischer Empfänger für FBAS-Video- und Audiosignale
- Für die Übertragung von Mono- oder Stereo-Audio konfigurierbar
- Konfigurierbare Möglichkeit zur Fernspeisung
- Kompatibel mit den Umschaltern, Kreuzschienen und Verteilverstärkern der MTP-Serie
Modell | Beschreibung der Version | Teilenummer | ||
---|---|---|---|---|

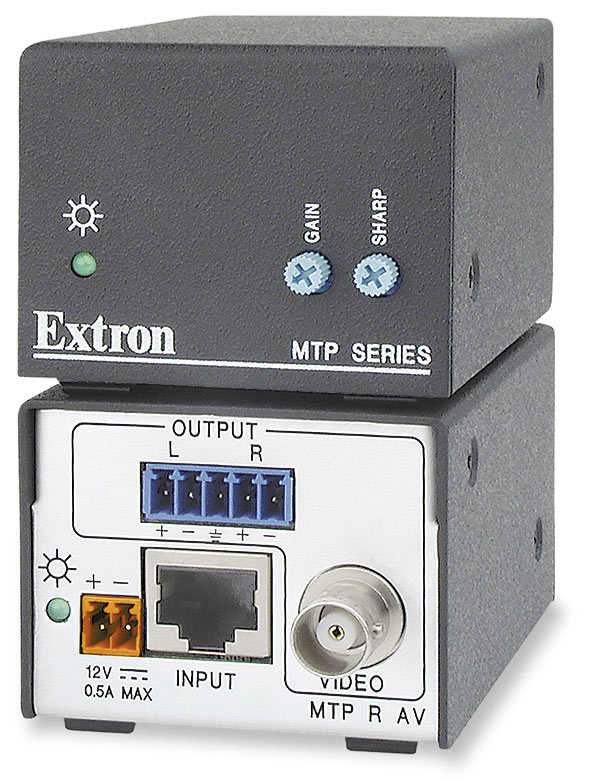

MTP R AV | Video- und Audio-Empfänger | 60-541-51 | ||

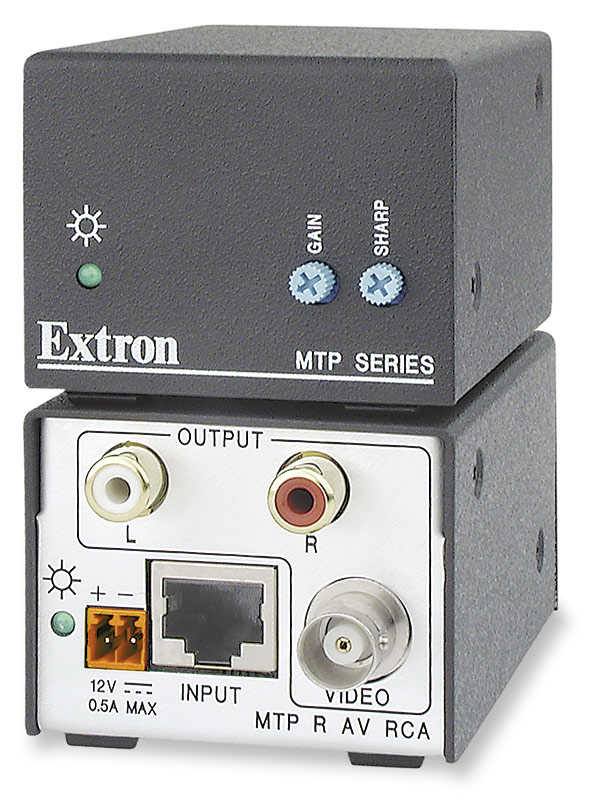

MTP R AV RCA | Video- und Audio-Empfänger - Cinch | 60-541-61 | AUS DEM PROGRAMM GENOMMEN |
Technische Daten
Technische Daten
-
MTP AV Series Video Gain Unity Differential phase error <1.0° at 3.58 MHz and 4.43 MHz Differential gain error <1.0% at 3.58 MHz and 4.43 MHz Video input Number/signal type MTP T AV Series 1 composite video MTP T SV Series 1 S-video MTP R AV/SV Series 1 set of proprietary analog signals Connectors MTP T AV Series 1 female BNC MTP T AV AAP 1 female RCA MTP T SV Series 1 female 4-pin mini DIN MTP R AV/SV Series 1 female RJ-45 Nominal level 1 Vp-p for Y of S-video and for composite video
0.3 Vp-p for C of S-videoMinimum/maximum levels 0.3 V to 1.5 Vp-p with no offset Impedance 75 ohms Return loss <-30 dB, DC @ 10 MHz DC offset (max. allowable) 100 mV Video output Number/signal type MTP T AV/SV Series, MTP T AAP Series 1 set of proprietary analog signals MTP R AV Series 1 composite video MTP R SV Series 1 S-video Connectors MTP T AV/SV Series 1 female RJ-45 MTP T AAP Series 1 female RJ-45 on a 3" (7.6 cm) pigtail MTP R AV Series 1 female BNC MTP R SV Series 1 female 4-pin mini DIN Nominal level 1 V p-p for Y of S-video and for composite video
0.3 V p-p for C of S-videoMinimum/maximum levels 0.3 V to 1.5 Vp-p Impedance 75 ohms Return loss <-35 dB @ 5 MHz DC offset ±20mV with input at 0 offset Sync Standards NTSC 3.58, NTSC 4.43, PAL, SECAM Audio Gain RCA models Unbalanced output: 0 dB (unity) All other models Unbalanced output: 0 dB (unity); balanced output: +6 dB Frequency response 20 Hz to 20 kHz, ±0.25 dB THD + Noise 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level S/N RCA models >90 dB, at maximum output (unweighted) All other models w/audio >90 dB, balanced at maximum output (unweighted) Crosstalk <-80 dB @ 1 kHz, fully loaded Stereo channel separation >75 dB @ 1 kHz CMRR >34 dB @ 20 Hz to 20 kHz Audio input Number/signal type MTP T AV, MTP T SV A 1 stereo, balanced/unbalanced MTP T AV/SV A RCA, MTP T AAP, MTP T 45 Series 1 stereo, unbalanced MTP R Series 1 set of proprietary analog signals Connectors MTP T AV, MTP T SV A (1) 3.5 mm captive screw connector, 5 pole MTP T AV/SV A RCA, MTP T AAP 1 pair of female RCA MTP R Series 1 female RJ-45 (shielded) Impedance >5.6k ohms ±5% unbalanced, >10k ohms ±5% balanced Nominal level -10 dBV (0.32 Vrms) Maximum level >+2.4 dBu (balanced or unbalanced) at 1%THD+N NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output Number/signal type MTP T Series 1 set of proprietary analog signals (all MTP T models) MTP R AV, MTP R SV A 1 stereo or dual mono, balanced/unbalanced MTP R AV/SV A RCA 1 stereo or dual mono, unbalanced Connectors MTP T Series 1 female RJ-45 (shielded) MTP T AAP Series 1 female RJ-45 on a 3" (7.6 cm) pigtail MTP R AV, MTP R SV A (1) 3.5 mm captive screw connector, 5 pole MTP R AV/SV A RCA 1 pair of female RCA Impedance MTP R AV, MTP R SV A 50 ohms unbalanced, 100 ohms balanced MTP R AV/SV A RCA 50 ohms unbalanced Gain error ±0.1 dB channel to channel Maximum level (Hi-Z) >+3.3 dBu, balanced or unbalanced at 1%THD+N Maximum level (600 ohm) >+2.0 dBm, balanced or unbalanced at 1%THD+N General Recommended cable type CAT5/5e/6 (shielded or unshielded) External power supply 100 VAC to 240 VAC, 50-Hz, external; to 12 VDC, 1.0 A, regulated Power input requirements 12 VDC, 0.2 A NOTE If the distance between the transmitter and receiver is less than 200' (61 m) and if the internal jumper is in setting 2, you can connect a power supply to only one device in a transmitter/receiver pair. If the distance between transmitter and receiver is greater than 200' (61 m) or if the internal jumper is in setting 1 (default), connect a power supply to each device. Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount MTP T AAP Series Yes, with optional rack panel All other models Yes, with optional 1U rack shelf Furniture or wall mount MTP T AAP Series Yes, with optional AAP mounting plates All other models Yes, with optional brackets. Enclosure type Metal Enclosure dimensions (Depths exclude connectors and cables.) MTP T AAP Series Faceplate 1.4" H x 3.5" W x 0.1" D (3.6 cm H x 8.9 cm W x 0.3 cm D) (double space AAP plate) Transmitter 1.35" H x 2.7" W x 1.3" D (3.4 cm H x 6.9 cm W x 3.3 cm D) All other models 1.7" H x 2.2" W x 3.0" D (1U high, one-eighth rack wide)
(4.2 cm H x 5.6 cm W x 7.6 cm D)Product weight 1.0 lbs (0.5 kg) Shipping weight 3 lbs (2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (8.0-061112-D23) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-541-51 24,1 cm 18,1 cm 6,2 cm 0,78 kg
