MTP SW6
EUR
1440.00
€ 1440.00
Hersteller
Extron
Art.Nr.
60-928-01
EAN
60-928-01
Gewicht
1 kg
Produktbeschreibung
Hauptmerkmale
- Kompatibel mit allen Extron Mini Twisted Pair-Produkten der MTP-Serie
- Dynamischer Signallaufzeitausgleich am Eingang
- Pegel- und Peaking-Ausgleich für Videosignale an jedem Eingang
- Schaltbares Peaking für den Ausgang
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|

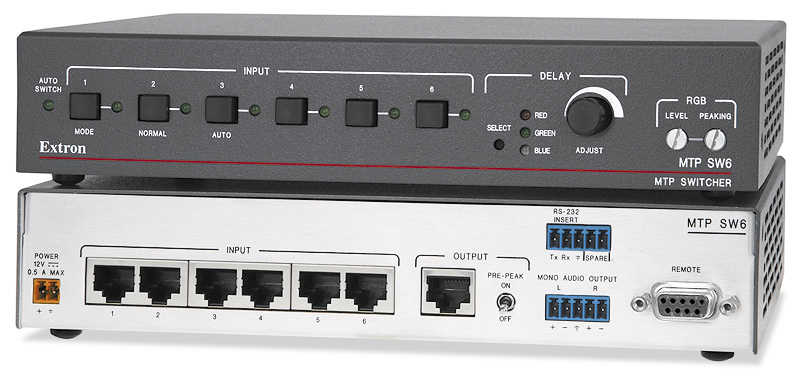

MTP SW6 | Mini Twisted Pair-Umschalter mit Sechs Eingängen | 60-928-01 |
Technische Daten
Technische Daten
-
MTP SW6 Video Gain Unity Video input — see MTP Series transmitter specifications Number/signal type 6 sets of proprietary analog signals Connectors 6 female RJ-45 Video output — See MTP Series receiver specifications Number/signal type 1 set of proprietary analog signals Connectors 1 female RJ-45 Maximum resolution 1920x1200 NOTE Refer to the user's manual for the maximum distances recommended for specific resolutions. Audio Number/signal type 1 set of proprietary analog signals Connectors 1 female RJ-45 Gain Unbalanced output: 0 dB; balanced output: +6 dB Frequency response 20 Hz to 20 kHz, ±1 dB THD + Noise 0.15% @ 1 kHz, 0.3% @ 20 kHz at nominal level S/N >70 dB at maximum output (unweighted) CMRR >43 dB @ 20 Hz to 20 kHz Audio input — see MTP Series transmitter specifications Number/signal type 6 sets of proprietary analog signals Connectors 6 female RJ-45 NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output — local Number/signal type 1 dual mono, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±1 dB channel to channel Maximum level (Hi-Z) >+18 dBu, balanced or unbalanced at 1% THD+N Maximum level (600 ohm) >+15 dBm, balanced or unbalanced at 1% THD+N Audio output — see MTP Series receiver specifications Number/signal type 1 set of proprietary analog signals Connectors 1 female RJ-45 Control/remote — switcher host control Serial control port 1 RS-232, 9-pin female D connector Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin configuration 2 = TX, 3 = RX, 5 = GND Program control Extron's control/configuration program for Windows®
Extron's Simple Instruction Set (SIS™)Control/remote — external device (pass-through) Serial control port RS-232, 3.5 mm captive screw connector, 5 pole (uses 3 poles) Baud rate and protocol Up to 38400 baud; 5-8 data bits; 1 or 2 stop bits; odd, even, or no parity; XON, XOFF, or no flow control NOTE Protocol is mirrored between the switcher and the receiver. Serial control pin configuration 1 = TX, 2 = RX, 3 = GND General Recommended cable type CAT5/5E/6 (shielded or unshielded) External power supply 100 VAC to 240 VAC, 50/60 Hz, external; to 12 VDC, 2 A, regulated Power input requirements 12 VDC, 0.8 A Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, vents on right and left sides Mounting Rack mount Yes, with optional 1U, 9.5" deep rack shelf (RSU 129, #60-190-01 or RSB 129, 60-604-01) or 1U, 6" deep rack shelf (RSU 126, #60-190-10 or RSB 126, 60-604-10) Furniture mount Yes, with optional Under-Desk Mounting Kit (MBU 125, part #70-077-01) Enclosure type Metal Enclosure dimensions 1.7" H x 8.7" W x 6.0" D (1U high, half rack wide)
(4.3 cm H x 22.1 cm W x 15.2 cm D)
(Depth excludes connector and knob.)Product weight 1.2 lbs (0.5 kg) Shipping weight 3 lbs (2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, CUL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Product warranty 3 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (7.6-100908-D7) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-928-01 7,0 cm 33,7 cm 28,6 cm 1,41 kg
