MTP T 15HD A D
EUR
516.00
€ 516.00
Hersteller
Extron
Art.Nr.
60-1283-02
EAN
60-1283-02
Produktbeschreibung
Hauptmerkmale
- Sendet hochauflösende Video- und summierte Mono-Audiosignale über ein einzelnes CAT5-Kabel
- Unterstützt RGBHV, RGBS, RGsB, RsGsBs, Komponenten-Video, S-Video und FBAS-Video
- EDID-Emulation zur Auswahl von Auflösungen und Bildwiederholfrequenzen für einen zuverlässigen Betrieb
- Pre-Peaking zur Optimierung der Videosignale über längere Kabelstrecken
- Kompatibel mit HDTV-Komponenten-Video, Bi-level- oder Tri-level-Synchronisation

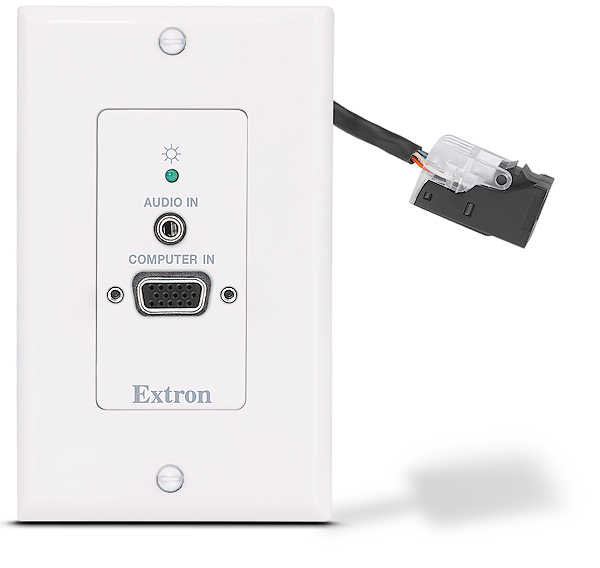

- Zum Einbau in das mitgelieferte Decorator-Wandanschlussfeld
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
MTP T 15HD A D | Sender, Wandanschlussfeld im Decorator-Format - Schwarz | 60-1283-02 | |
MTP T 15HD A D | Sender, Wandanschlussfeld im Decorator-Format - Weiß | 60-1283-03 |
Technische Daten
Technische Daten
-
MTP 15HD A Series Combo Video Gain Unity Number/signal type 1 set of proprietary analog signals Connectors MTP R 15HD RSA D 1 female RJ-45 on a pigtail All other models 1 female RJ-45 Video input and loop through — transmitters Number/signal type MTP T 15HD A, MTP C7 T 15HD A 1 analog RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or composite video
1 buffered RGBHV, RGBS, RGsB, RsGsBs local monitor loop through (includes ID bits)MTP T 15HD A AAP, MTP T 15HD A D, MTP T 15HD A WM 1 analog RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or composite video Connectors MTP T 15HD A, MTP C7 T 15HD A 2 female 15-pin HD All other transmitters 1 female 15-pin HD Nominal level 1 Vp-p for Y of component video and
S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-videoMinimum/maximum levels 0.3 V to 1.45 Vp-p Impedance 75 ohms Horizontal frequency 15 kHz to 130 kHz Vertical frequency 30 Hz to 150 Hz Return loss <-30 dB @ 5 MHz DC offset (max. allowable) 250 mV Video output — receivers (MTP RL 15HD A, MTP RL 15HD A SEQ, MTP R 15HD RSA D, MTP 1500RL 15HD A SEQ. MTP C7 RL 15HD A) Number/signal type MTP R 15HD RSA D 1 analog VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs, HD component video, component video, S-video, or composite video All other receivers 1 set of proprietary analog signals
1 analog RGBHV, RGBS, RGsB, RsGsBs, component video (bi-/tri-level sync), S-video, or composite videoConnectors MTP R 15HD RSA D 1 female 15-pin HD All other receivers 1 female RJ-45
1 female 15-pin HDNominal level 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-videoMinimum/maximum levels 0.3 V to 1.45 Vp-p Impedance 75 ohms Return loss <-30 dB @ 5 MHz DC offset MTP R 15HD RSA D <±20 mV with input at 0 offset All other receivers <±35 mV with input at 0 offset Skew compensation 62 ns Maximum resolution MTP 1500RL 15HD A SEQ Up to 1600x1200 and 1080p at 1500'
Up to 1920x1200 and 2048x1080 at 1200'All other models Up to 1920x1200 or 2048x1080 or 1080p at 300'
Up to 1024x768 at 600'NOTE See the user guide for the maximum distances recommended for specific resolutions. Sync Input type (transmitters) RGBHV, RGBS, RGsB, RsGsBs Output type (receivers) RGBHV, RGBS, RGsB, RsGsBs Standards NTSC 3.58, NTSC 4.43, PAL, SECAM Input level (transmitter) 3.5 V to 5.5 Vp-p, unterminated Output level (receivers) 4.0 V to 5.0 Vp-p, unterminated Input impedance (transmitter) 573 ohms ±5% Output impedance (receivers) MTP C7 15HD models 92 ohms ±8% (25 mA) All other models 110 ohms Polarity Transmitter Positive or negative (follows input polarity) Receivers Positive or negative (switch-selectable) Audio — all models Number/signal type 1 set of proprietary analog signals Connectors 1 female RJ-45 Gain Unbalanced output: 0 dB; balanced output: +6 dB Frequency response 20 Hz to 20 kHz, ±1 dB THD + Noise 0.15% @ 1 kHz, 0.3% @ 20 kHz at nominal level S/N >70 dB at maximum output (unweighted) Stereo channel separation >60 dB @ 1 kHz CMRR >43 dB @ 20 Hz to 20 kHz Audio input — transmitters Number/signal type 1 stereo, unbalanced Connectors (1) 3.5 mm mini stereo jack Impedance >10k ohms, unbalanced Nominal level +4 dBu (1.23 Vrms), -10 dBV
(316 mVrms)Maximum level MTP C7 15HD models +12 dBu, (unbalanced) at 1%THD+N All other models +18 dBu, (unbalanced) at 1%THD+N NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Audio output — MTP T 15HD A AAP, MTP T 15HD A D, MTP T 15HD A WM local stereo output Number/signal type 1 stereo, balanced/unbalanced Connectors (1) 3.5 mm direct insertion captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±1 dB channel to channel Maximum level (Hi-Z) >+23 dBu, balanced or unbalanced at 1% THD+N Maximum level (600 ohm) >+17 dBm, balanced or unbalanced at 1% THD+N Audio output — receivers Number/signal type MTP R 15HD RSA D 1 mono, balanced/unbalanced All other receivers 2 mono, balanced/unbalanced Connectors MTP R 15HD RSA D (1) 3.5 mm captive screw connector, 5 pole (uses 3 poles) All other receivers (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±1 dB channel to channel Nominal level +4 dBu (1.23 Vrms), -10 dBV (316 mVrms) Maximum level MTP R 15HD RSA D 14 dBm, unbalanced at 1% THD+N All other receivers +18 dBu, unbalanced at 1% THD+N Control/remote — external device (pass-through, unidirectional or bidirectional) — MTP R 15HD RSA D only Serial control port input/output 1 set of proprietary signals on a female RJ-45 jack Serial control port output/input RS-232 via 3 poles of a 3.5 mm captive screw connector, 5 pole Baud rates Up to 38400 bps at up to 600' (182.9 m) (Higher data rates and distances are possible. Performance varies based on baud rate and cable length.) Protocol Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, noneNOTE Protocol is mirrored between the transmitter and the receiver. Serial control pin configuration Captive screw connector: 1 = Tx, 2 = Rx,
3 = GNDGeneral Recommended cable type Models other than C7 models CAT 5/5e/6 (shielded or unshielded) Required cable type MTP C7 15HD models Extron STP201 or CAT 7 Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1 A, 12 wattsPower input requirements MTP 1500RL 15HD A SEQ 12 VDC, 1 A All other models 12 VDC, 0.5 A Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling MTP 1500RL 15HD A SEQ Convection, vents sides to top All other models Convection, no vents Mounting Rack mount MTP T 15HD A, MTP RL 15HD A, MTP RL 15HD A SEQ, MTP 1500RL 15HD A SEQ Yes, with optional 1U rack shelf Furniture or wall mount MTP T 15HD A, MTP RL 15HD A, MTP RL 15HD A SEQ Yes, with optional under-desk mounting kit MTP T 15HD A AAP Yes, with optional AAP mounting faceplates that have double space high AAP opening MTP T 15HD A D, MTP R 15HD RSA D Yes, in a decorator-style opening with a standard electrical wall box or decorator-style size mud ring MTP T 15HD A WM Yes, in a 1-gang opening Wall mount MTP 1500RL 15HD models Yes, with optional wall mounting kit Pole mount MTP T 15HD A, MTP RL 15HD A, MTP RL 15HD A SEQ Yes, with optional pole mounting kit Enclosure type Metal Enclosure dimensions MTP T 15HD A, MTP RL 15HD A, MTP RL 15HD A SEQ 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
4.3 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.)MTP C7 15HD models 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
(4.3 cm H x 10.9 cm W x 7.6 cm D)
(Depth excludes connectors and knobs.)MTP 1500RL 15HD SEQ models 1.0" H x 8.75" W x 6.0" D (half rack wide)
(2.5 cm H x 22.2 cm W x 15.2 cm D)
(Depth excludes connectors.)Faceplates MTP T 15HD A AAP 1.4" H x 3.5" W x 0.1" D (3.6 cm H x 8.9 cm W x 0.3 cm D)
(double space high AAP plate)MTP T 15HD A D, MTP R 15HD RSA D 2.6" H* x 1.3" W x 0.1" D (6.6 cm H* x 3.3 cm W x 0.3 cm D)
(Fits the opening in a 1 gang, 4.4" H x 2.7" W
decorator-style wallplate. Depth excludes connectors.)
*Overall height is 4.1" (10.4 cm) including mounting tabs.MTP T 15HD A WM 4.5" H x 2.8" W x 0.1" D
(11.4 cm H x 7.1 cm W x 0.3 cm D)
(1 gang)Device MTP R 15HD RSA D 2.75" H x 1.65" W x 1.3" D
(7.0 cm H x 4.2 cm W x 3.3 cm D)
(Depth excludes connectors.)Other AAP, D, and WM models 2.7" H x 1.4" W x 1.4" D
(6.9 cm H x 3.6 cm W x 3.6 cm D)
(Depth excludes connectors.)Product weight MTP 1500RL 15HD A SEQ 1 lb (0.5 kg) All other models 0.4 lbs (0.2 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance Safety CE, c-UL, UL EMI/EMC CE, C-tick, FCC Class A, ICES, VCCI Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (CMS-041917-D18) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-1283-02 6,8 cm 18,1 cm 24,1 cm 0,79 kg 60-1283-03 6,8 cm 18,1 cm 24,1 cm 0,79 kg
