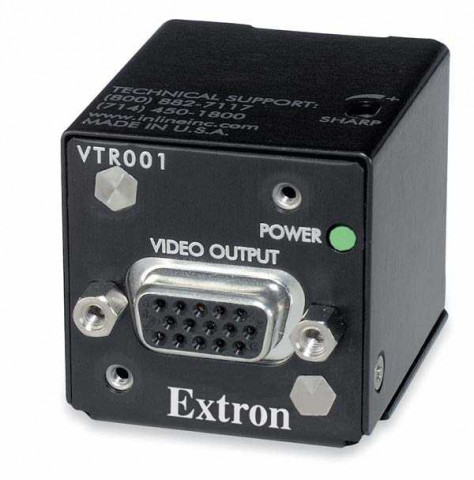

VTR001

Technische Daten

VTT001 and VTR001 Series
Video
Number/signal type	1 set of proprietary analog signals
Connectors	1 female RJ-45 jack or 1 female RJ-45 jack on a 3" (7.6 cm) pigtail
Video input
Number/signal type
VTT001 series	RGBHV, RGBS
VTR001 series	1 set of proprietary analog signals from a VTT001 model
Connectors
VTT001 series	1 female 15-pin HD
VTR001	1 female RJ-45 jack
VTR001 MAAP/AAP	1 female RJ-45 jack on a 3" (7.6 cm) pigtail
Nominal level	0.7 Vp-p for RGB
Minimum/maximum levels	Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance	75 ohms
Horizontal frequency	15 kHz to 130 kHz
Vertical frequency	30 Hz to 150 Hz
Video output
Number/signal type
VTT001 series	1 set of proprietary analog signals
VTR001 series	RGBHV, RGBS
Connectors
VTT001 series	1 female RJ-45 jack
VTT001 MAAP	1 female RJ-45 on a 3" (7.6 cm) pigtail
VTR001 series	1 female 15-pin HD
Nominal level	0.7 V p-p for RGB
Minimum/maximum levels	0.3 V to 1.45 Vp-p
Impedance	75 ohms
Maximum resolution	1600x1200
NOTE     See the user guide for the maximum distances recommended for specific resolutions.
Sync
Input type
VTT001 series	RGBHV, RGBS
Output type
VTR001 series	RGBHV, RGBS
Input level	2.0 V to 5.5 Vp-p with ±0.2 VDC offset max.
Output level	3.0 V to 4.0 Vp-p
Input impedance	Hi-Z
Output impedance	75 ohms
Max. propagation delay	580 ns
Max. rise/fall time	45 ns
Polarity	Negative
General
Recommended cable type	CAT 5/5e/6 (shielded or unshielded)
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
NOTE     The VTT and VTR units will accept 7-15 VDC.
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional mounting hardware
Furniture or wall mount	Yes, with optional mounting hardware
Enclosure type	Metal
Enclosure dimensions
VTT001/VTR001 MAAP
Faceplate	1.4" H x 2.2" W x <0.1" D (3.5 cm H x 5.6 cm W x 0.1 cm D) (double space high MAAP plate)
VTR001 AAP
Faceplate	1.4" H x 3.5" W x 0.1" D (3.5 cm H x 8.9 cm W x 0.3 cm D) (double space high AAP plate)
VTT001 series
Device	1.4" H x 1.4" W x 1.4" D (3.5 cm H x 3.5 cm W x 3.5 cm D) (Depth excludes connectors.)
VTR001 series
Device	1.4" H x 1.4" W x 1.75" D (3.5 cm H x 3.5 cm W x 4.4 cm D) (Depth excludes connectors.)
Product weight	1.0 lbs (0.5 kg)
Compliance	CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4441-D18)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-582-01	6,4 cm	22,2 cm	31,3 cm	0,8 kg
