VTT001
EUR
304.80
€ 304.80
Hersteller
Extron
Art.Nr.
60-581-01
EAN
60-581-01
Produktbeschreibung
Hauptmerkmale
- Übertragung von hochauflösende Computer-Videosignale über 90 meter unter Verwendung von UTP-Kabel des Typs CAT 5, 5e oder 6
- Kompatibel zu VGA–QXGA-, Mac-, Sun®-, und SGI-Computern
- Kompakte Tisch-, MAAP- und AAP-Versionen sind erhältlich
- Möglichkeit zur Fernstromversorgung
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|

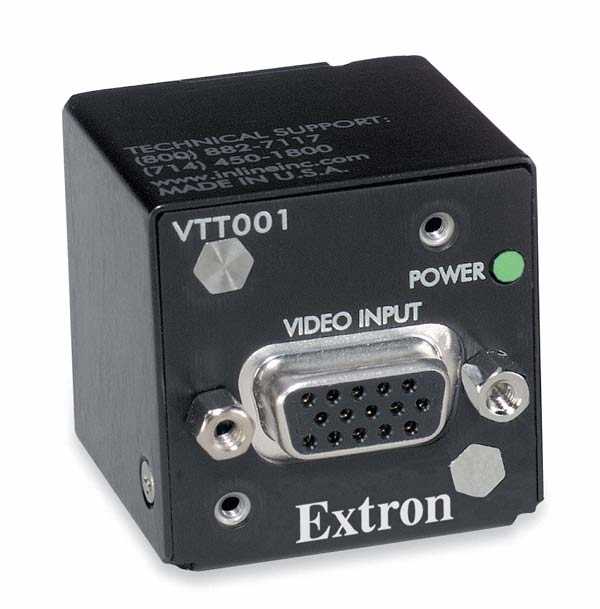

VTT001 | Sender für RGB Computer-Videosignale | 60-581-01 |
Technische Daten
Technische Daten
-
VTT001 and VTR001 Series Video Number/signal type 1 set of proprietary analog signals Connectors 1 female RJ-45 jack or
1 female RJ-45 jack on a 3" (7.6 cm) pigtailVideo input Number/signal type VTT001 series RGBHV, RGBS VTR001 series 1 set of proprietary analog signals from a VTT001 model Connectors VTT001 series 1 female 15-pin HD VTR001 1 female RJ-45 jack VTR001 MAAP/AAP 1 female RJ-45 jack on a 3" (7.6 cm) pigtail Nominal level 0.7 Vp-p for RGB Minimum/maximum levels Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain Impedance 75 ohms Horizontal frequency 15 kHz to 130 kHz Vertical frequency 30 Hz to 150 Hz Video output Number/signal type VTT001 series 1 set of proprietary analog signals VTR001 series RGBHV, RGBS Connectors VTT001 series 1 female RJ-45 jack VTT001 MAAP 1 female RJ-45 on a 3" (7.6 cm) pigtail VTR001 series 1 female 15-pin HD Nominal level 0.7 V p-p for RGB Minimum/maximum levels 0.3 V to 1.45 Vp-p Impedance 75 ohms Maximum resolution 1600x1200 NOTE See the user guide for the maximum distances recommended for specific resolutions. Sync Input type VTT001 series RGBHV, RGBS Output type VTR001 series RGBHV, RGBS Input level 2.0 V to 5.5 Vp-p with ±0.2 VDC offset max. Output level 3.0 V to 4.0 Vp-p Input impedance Hi-Z Output impedance 75 ohms Max. propagation delay 580 ns Max. rise/fall time 45 ns Polarity Negative General Recommended cable type CAT 5/5e/6 (shielded or unshielded) Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 wattsNOTE The VTT and VTR units will accept 7-15 VDC. Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount Yes, with optional mounting hardware Furniture or wall mount Yes, with optional mounting hardware Enclosure type Metal Enclosure dimensions VTT001/VTR001 MAAP Faceplate 1.4" H x 2.2" W x <0.1" D (3.5 cm H x 5.6 cm W x 0.1 cm D)
(double space high MAAP plate)VTR001 AAP Faceplate 1.4" H x 3.5" W x 0.1" D (3.5 cm H x 8.9 cm W x 0.3 cm D)
(double space high AAP plate)VTT001 series Device 1.4" H x 1.4" W x 1.4" D (3.5 cm H x 3.5 cm W x 3.5 cm D)
(Depth excludes connectors.)VTR001 series Device 1.4" H x 1.4" W x 1.75" D (3.5 cm H x 3.5 cm W x 4.4 cm D)
(Depth excludes connectors.)Product weight 1.0 lbs (0.5 kg) Compliance CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (4441-D18) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-581-01 6,4 cm 22,2 cm 31,3 cm 0,79 kg
