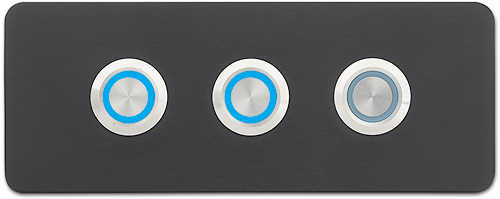

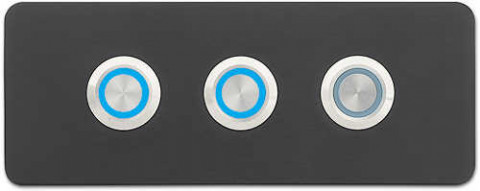

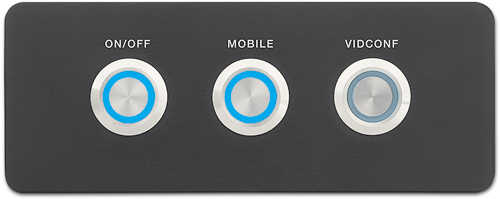

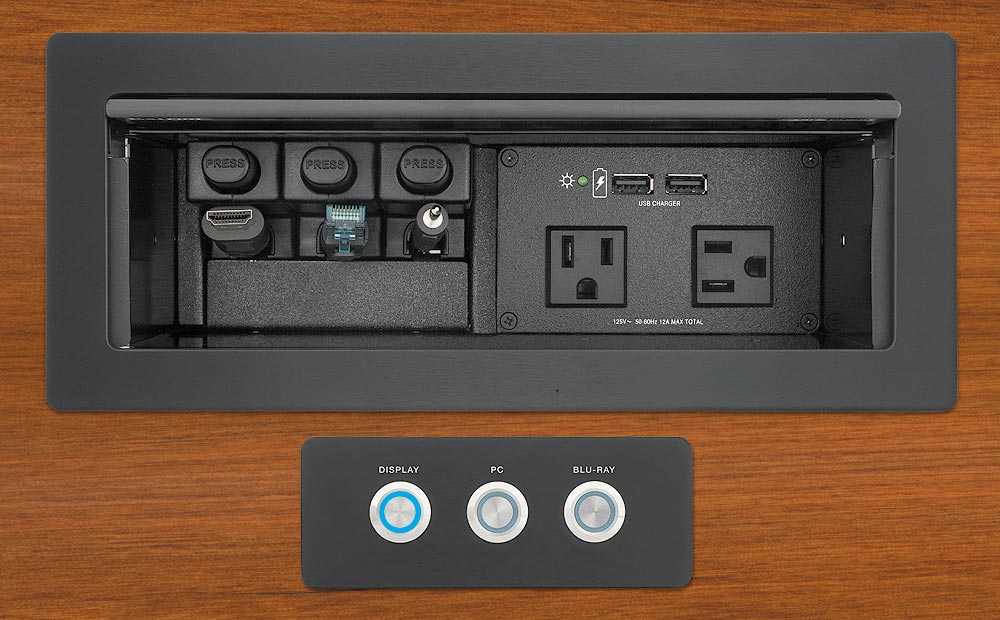

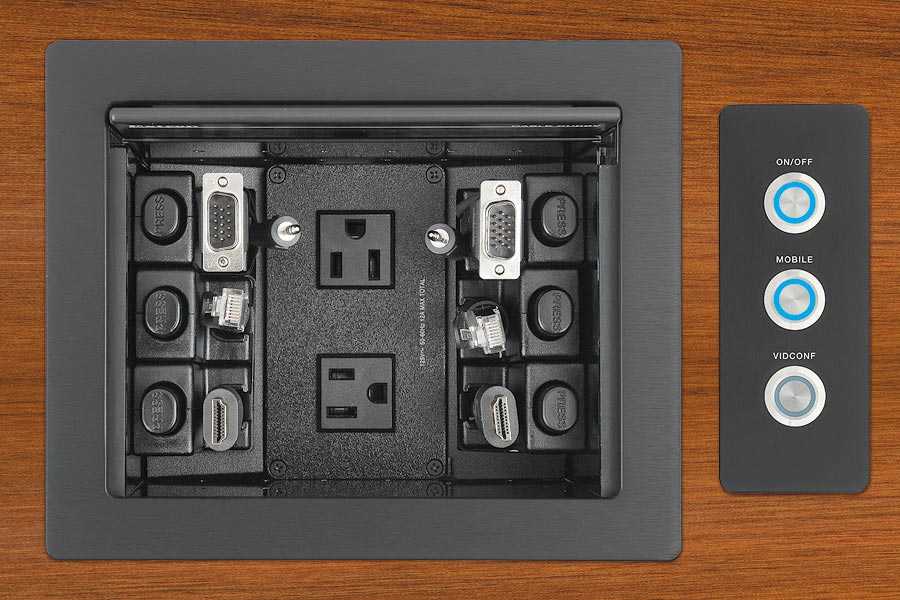

CCR 30

Technische Daten

CCR 30
Switch contact closure
Quantity/type	3 normally open switches

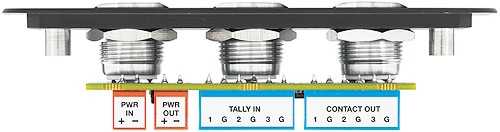

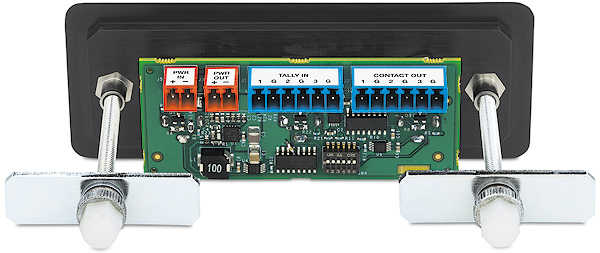

Connectors	(2) 3.5 mm captive screw connector, 6 pole
Contact output port	(1) 3.5 mm captive screw connector, 6-pole
Maximum current
Momentary	250 mA Sink from 6 VDC, maximum
Latching	25 mA sink from 6 VDC, maximum
Tally Out pins	(1) 3.5 mm captive screw connector, 6-pole
Maximum current	300mA sink from 6 VDC, maximum
NOTE     Each switch can be used to select an input on a connected switcher.  See the CCR installation instructions for details.
NOTE     Each switch can be configured in either single or toggle mode.  In single mode, a switch can be used to select an input on a connected switcher.  In toggle mode, a switch can be used to toggle display power on or off.  See the CCR 30 installation guide.
General
Power input requirements	12 VDC, 0.04 A, (no load on Power Out connector) 12 VDC, 1.0 A (full load on Power Out connector), supplied by an external power supply
External power supply	100 VAC to 240 VAC, 50/60 Hz, external; to 12 VDC, 1 A, regulated (External power supply is optional.)
Power consumption
Device	0.3 watts, 12 VDC (no load on Power Out connector) 11.7 watts, 12 VDC (full load on Power Out connector)
Device and power supply	0.7 watts, 100-240 VAC, 50-60 Hz (no load on Power Out connector) 15.0 watts, 100-240 VAC, 50-60 Hz (full load on Power Out connector)
Temperature/humidity	Storage: -13 to +131 °F (-25 to +55 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	1.0 BTU/hr (no load on Power Out connector) 40.0 BTU/hr (full load on Power Out connector)
Device and power supply	2.1 BTU/hr (no load on Power Out connector) 50.9 BTU/hr (full load on Power Out connector)
Mounting
Furniture mount	Yes
Min./max. table thickness	0.50” to 2.00”
Rack mount	No
Enclosure type	Metal
Enclosure dimensions
Faceplate	1.75" H x 4.5" W x 0.2" D (4.4 cm H x 11.4 cm W x 0.5 cm D)
Device	1.31" H x 3" W x 1" D (3.3 cm H x 7.6 cm W x 2.5 cm D)
Product weight	0.3 lb (0.13 kg)
Shipping weight	1 lb (<1 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
EMI/EMC	CE, FCC Class A
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(8.1-063015-D3)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-1446-02	6,7 cm	17,8 cm	13,7 cm	0,23 kg
