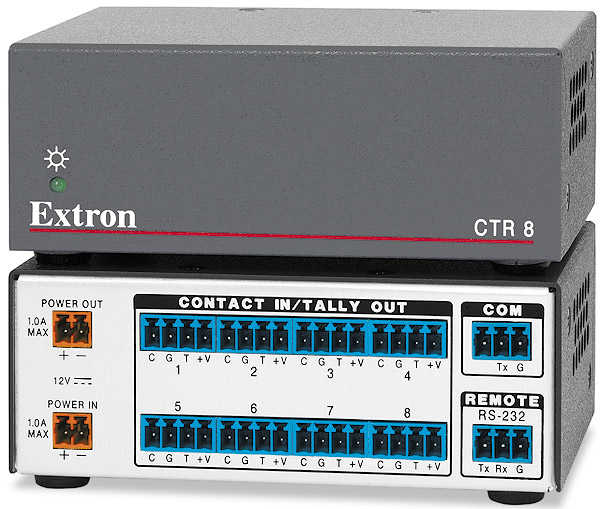

CTR 8

Technische Daten

CTR 8
Control — host port
Serial control port	1 bidirectional RS-232 on a 3.5 mm captive screw connector, 3 pole
Baud rate and protocol	9600 baud, 8 data bits, 1 stop bit, no parity
Serial control pin configuration	Pin 1 = Tx, pin 2 = Rx, pin 3 = Gnd
Program control	Extron Simple Instruction Set (SIS™)
Control — unidirectional serial port
Switcher control port	(1) 3.5 mm captive screw connector, 3 pole for unidirectional RS-232 control (±5 V)
Baud rate and protocol (RS-232)	9600 (default), 19200, 38400, 57600 baud; 8 data bits; 1 stop bit; no parity
Pin configuration	Pin 1 = not used, pin 2 = Tx, pin 3 = Gnd
Control — contact closure inputs with tally
Number/signal type	8 contact closure inputs and 8 tally outputs
Connector	(8) 3.5 mm captive screw connector, 4 pole
Contact closure and tally pin configurations	C = contact, G = ground, T = tally, +V = +5 V (200 mA max) 200 mA max is shared between all +V pins.
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.0 A, 12 watts
Power input requirements	12 VDC, 0.25 A (no load on Power Out connector) 12 VDC, 1.0 A max (load on Power Out connector)
Power consumption
Device	2.9 watts, 12 VDC (no load on Power Out connector) 12.4 watts, 12 VDC (full load on Power Out connector)
Device and power supply	3.8 watts, 100-240 VAC, 50-60 Hz (no load on Power Out connector) 15.2 watts, 100-240 VAC, 50-60 Hz (full load on Power Out connector)
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	4.9 BTU/hr (no load on Power Out connector) 37.3 BTU/hr (full load on Power Out connector)
Device and power supply	8.0 BTU/hr (no load on Power Out connector) 46.8 BTU/hr (full load on Power Out connector)
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with included MBU 123
Pole mount	Yes, with optional mini pole mount
Enclosure dimensions
Device	1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) (4.3 cm H x 10.9 cm W x 7.6 cm D) (Depth excludes connectors.)
Product weight	0.7 lbs (0.3 kg)
Shipping weight	2.0 lbs (1.0 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE, C-tick, ICES, FCC Class A, VCCI, ICES
Environmental	Complies with appropriate requirements for RoHS and WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(8.0-121713-D1)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-1408-01	7,5 cm	26,7 cm	19,1 cm	0,77 kg
