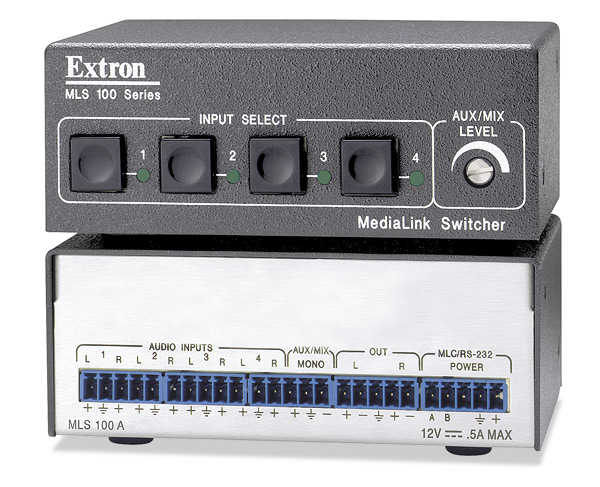

MLS 100 A
EUR
504.00
€ 504.00
Hersteller
Extron
Art.Nr.
60-497-01
EAN
60-497-01
Produktbeschreibung
Hauptmerkmale
- Zusätzlicher Eingang für symmetrische/unsymmetrische Linepegel-Mono-Audiosignale zur Mischung mit jedem der vier umschaltbaren Eingänge
- Audioverstärkung und -dämpfung am Eingang
- Steuerbar über TouchLink®-Mediensteuerung, MediaLink®-Controller, Tasten auf dem Frontbedienfeld oder RS-232
- Rackmontierbares, 1 HE hohes Metallgehäuse mit 1/4-Rackbreite
- Externes Extron Everlast™-Netzteil im Lieferumfang enthalten
| Modell | Beschreibung der Version | Teilenummer | |
|---|---|---|---|
| MLS 100 A | Vier Audioeingänge | 60-497-01 |
Technische Daten
Technische Daten
-
MLS 100 A Audio Gain Unbalanced output: -6 dB; balanced output: 0 dB (unity) Frequency response 20 Hz to 20 kHz, ±0.5 dB THD + Noise <0.5% @ 1 kHz at nominal level S/N >90 dB @ 20 Hz to 20 kHz Crosstalk <-65 dB @ 20 Hz to 20 kHz, <-80 dB @ 1 kHz and below 60 Hz, fully loaded Stereo channel separation >72 dB @ 20 Hz to 20 kHz CMRR >75 dB @ 20 Hz to 20 kHz Audio input Number/signal type 4 stereo/mono, unbalanced (switchable)
1 mono, balanced/unbalanced aux-mix (always active, non-switchable)Connectors (5) 3.5 mm captive screw connectors, 3 pole Impedance >10k ohms unbalanced, >20k ohms balanced, DC coupled Nominal level -20 dBV (100 mV), -10 dBV (316 mV), 0dBu (0.775 V), or +4 dBu (1.23 V); (configurable) NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu
+4 dBu and 0 dBu are professional audio line level standards.
-10 dBV and -20 dBV are semiprofessional, computer audio, and consumer audio standards.Maximum level +14 dBu, (balanced or unbalanced) at stated %THD+N Input gain adjustment –18 dB to +24 dB, adjustable per input (via RS-232/control software) Aux/Mix level adjustment -43 dB to +24 dB (adjustable only via front panel) Audio output Number/signal type 1 stereo or mono, balanced/unbalanced Connectors (1) 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±0.1 dB channel to channel Maximum level (Hi-Z) >+21 dBu, balanced or unbalanced at 1% THD+N Maximum level (600 ohm) >+15 dBm, balanced or unbalanced at 1% THD+N NOTE An unbalanced-wired output results in a 6 dB attenuation. A balanced-wired output has unity (0 dB) gain/attenuation. Control/remote — switcher Serial control port RS-232, 3.5 mm, 5 pole captive screw connector Baud rate and protocol 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin configuration A = Tx, B = Rx, D = Gnd Program control Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)General Power Supplied by an optional MediaLink Controller (MLC) or an external power supply Power supply External, included
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 0.5 A, 6 wattsPower input requirements 12 VDC, 0.4 A Temperature/humidity Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing
Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensingCooling Convection, no vents Mounting Rack mount Yes, with optional 1U rack shelf Furniture mount Yes, with optional mini under-desk mounting kit Pole mount Yes, with optional mini pole mounting kit Enclosure type Metal Enclosure dimensions 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)
(42 mm H x 110 mm W x 76 mm D)
(Depth excludes connectors and buttons.)Product weight 0.7 lbs (0.3 kg) Regulatory compliance CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (4404-D5) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-497-01 6,2 cm 18,1 cm 24,1 cm 0,87 kg
