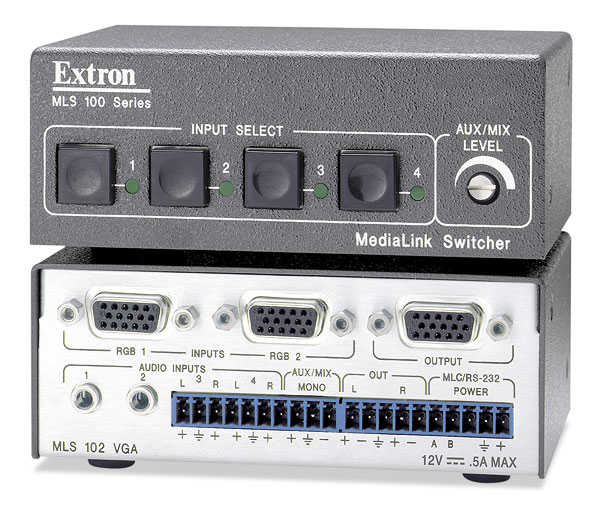

MLS 102 VGA

Technische Daten

MLS 102 VGA
Video
Gain	Unity
Bandwidth	250 MHz (-3 dB)
Differential phase error	0.01°, at 3.58 MHz and 4.43 MHz
Differential gain error	0.01%, at 3.58 MHz and 4.43 MHz
Crosstalk	-50 dB @ 5 MHz
Video input
Number/signal type	2 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
Connectors	2 female 15-pin HD
Nominal level	0.7 Vp-p for RGB
Minimum/maximum levels	0.3 V to 2.0 Vp-p with no offset
Impedance	75 ohms
Horizontal frequency	15 kHz to 150 kHz
Vertical frequency	30 Hz to 150 Hz
Return loss	<-45 dB @ 5 MHz
DC offset (max. allowable)	1.5 V
Video output
Number/signal type	1 VGA-UXGA RGBHV, RGBS, RGsB, RsGsBs
Connector	1 female 15-pin HD
Nominal level	0.7 Vp-p for RGB
Minimum/maximum levels	0.3 V to 2.0 Vp-p
Impedance	75 ohms
Return loss	-38 dB @ 5 MHz
DC offset	±5 mV maximum with input at 0 offset
Sync
Input type	RGBHV, RGBS, RGsB, RsGsBs
Output type	RGBHV, RGBS, RGsB, RsGsBs (follows input)
Input level	0.5 V to 5.0 Vp-p
Output level	0.5 V to 5.0 Vp-p, unterminated
Input impedance	75 ohms
Output impedance	75 ohms
Max. input voltage	5.0 Vp-p
Max. propagation delay	30 ns
Polarity	Positive or negative (follows input)
Audio
Gain	Unbalanced output: -6 dB; balanced output: 0 dB (unity)
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	<0.5% @ 1 kHz at nominal level
S/N	>90 dB @ 20 Hz to 20 kHz
Crosstalk	<-65 dB @ 20 Hz to 20 kHz, <-80 dB @ 1 kHz and below 60 Hz, fully loaded
Stereo channel separation	>72 dB @ 20 Hz to 20 kHz
CMRR	>75 dB @ 20 Hz to 20 kHz
Audio input
Number/signal type	4 stereo/mono, unbalanced (switchable) 1 mono, balanced/unbalanced aux-mix (always active, non-switchable)
Connectors	2 mini stereo jacks (female tip-ring-sleeve connectors) (3) 3.5 mm captive screw connectors, 3 pole
Impedance	>10k ohms unbalanced, >20k ohms balanced, DC coupled
Nominal level	-20 dBV (100 mV), -10 dBV (316 mV), 0dBu (0.775 V), or +4 dBu (1.23 V); (configurable)
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu +4 dBu and 0 dBu are professional audio line level standards. -10 dBV and -20 dBV are semiprofessional, computer audio, and consumer audio standards.
Maximum level	+14 dBu, (balanced or unbalanced) at stated %THD+N
Input gain adjustment	–18 dB to +24 dB, adjustable per input (via RS-232/control software)
Aux/Mix level adjustment	-43 dB to +24 dB (adjustable only via front panel)
Audio output
Number/signal type	1 stereo or mono, balanced/unbalanced
Connectors	(1) 3.5 mm captive screw connector, 5 pole
Impedance	50 ohms unbalanced, 100 ohms balanced
Gain error	±0.1 dB channel to channel
Maximum level (Hi-Z)	>+21 dBu, balanced or unbalanced at 1% THD+N
Maximum level (600 ohm)	>+15 dBm, balanced or unbalanced at 1% THD+N
NOTE     An unbalanced-wired output results in a 6 dB attenuation.  A balanced-wired output has unity (0 dB) gain/attenuation.
Control/remote — switcher
Serial control port	RS-232, 3.5 mm, 5 pole captive screw connector
Baud rate and protocol	9600 baud, 8 data bits, 1 stop bit, no parity
Serial control pin configuration	A = Tx, B = Rx, D = Gnd
Program control	Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™)
General
Power	Supplied by an optional MediaLink Controller (MLC) or an external power supply
Power supply	External, included Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts
Power input requirements	12 VDC, 0.4 A
Temperature/humidity	Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, noncondensing Operating +32° to +122°F (0° to +50°C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional mini under-desk mounting kit
Pole mount	Yes, with optional mini pole mounting kit
Enclosure type	Metal
Enclosure dimensions	1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) (42 mm H x 110 mm W x 76 mm D) (Depth excludes connectors and buttons.)
Product weight	0.7 lbs (0.3 kg)
Regulatory compliance	CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(4402-D5-091418)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-497-04	6,2 cm	18,1 cm	24,1 cm	0,93 kg
