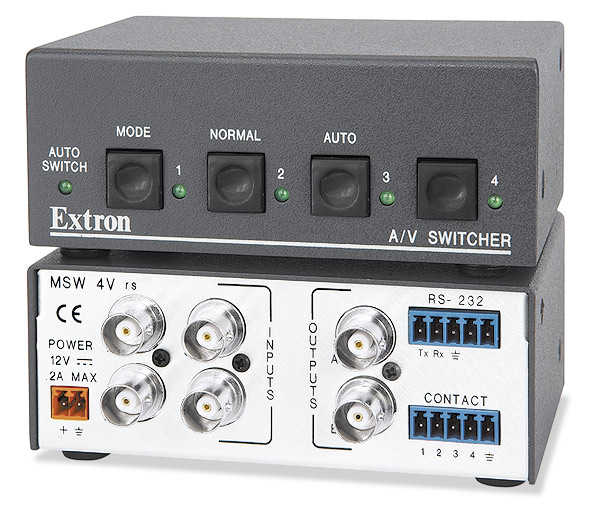

MSW 4V rs

Technische Daten

MSW 4 rs Series
Video — MSW 4V rs, MSW 4SV rs
Gain	Unity
Bandwidth
MSW 4V rs	300 MHz (-3 dB)
MSW 4SV rs	250 MHz (-3 dB)
Crosstalk	<-60 dB @ 3.58 MHz
Switching speed	20 ms (max.)
Video — MSW 4V SDI rs
Resolution	8 or 10 bits, automatic
Operation standards	143 Mb/s (4fsc NTSC) 177 Mb/s (4fsc PAL) 270 Mb/s (4:2:2) component video 360 Mb/s (4:2:2) widescreen, autoselect
Equalization and reclocking	Automatic for up to -30 dB of cable loss
Automatic data rate clock	Yes
Video input
Number/signal type
MSW 4V rs	4 composite video
MSW 4SV rs	4 S-video
MSW 4V SDI rs	4 serial digital component video
Connectors
MSW 4V rs, MSW 4V SDI rs	4 female BNC
MSW 4SV rs	4 female 4-pin mini DIN
Nominal level	1 Vp-p for Y of S-video and for composite video 0.3 Vp-p for C of S-video 0.8 Vp-p for SDI
Minimum/maximum levels
MSW 4V rs, MSW 4SV rs	0.4 V to 2.0 Vp-p with no offset
Impedance	75 ohms
Return loss
MSW 4SV rs	<-25 dB, DC @ 10 MHz
Other models	<-40 dB, DC @ 10 MHz
DC offset (max. allowable)	5.0 V
Input coupling
MSW 4V rs, MSW 4SV rs	DC
MSW 4V SDI rs	AC
Video output
Number/signal type
MSW 4V rs	2 composite video
MSW 4SV rs	1 S-video, 1 composite video
MSW 4V SDI rs	2 reclocked SMPTE-259 serial digital component video
Connectors
MSW 4V rs, MSW 4V SDI rs	2 female BNC
MSW 4SV rs	1 female BNC, 1 female 4-pin mini DIN
Nominal level	1 Vp-p for Y of S-video and for composite video 0.3 Vp-p for C of S-video 0.8 Vp-p for SDI
Minimum/maximum levels
MSW 4V rs, MSW 4SV rs	0.4 V to 2.0 Vp-p
Impedance	75 ohms
Return loss
MSW 4V/4SV rs	<-30 dB @ 5 MHz
MSW 4V SDI rs	<-25 dB @ 5 MHz
DC offset	±5 mV maximum with input at 0 offset
Switching type
MSW 4V rs/4SV rs	Vertical interval
Jitter
MSW 4V SDI rs	<2 µs
Rise/fall time (20-80%)
MSW 4V SDI rs	700 ps ±100 ps
Re-clocking
MSW 4V SDI rs	Automatic, bypass mode for nonstandard rates
Sync
Standards
MSW 4V rs, MSW 4SV rs	NTSC 3.58, NTSC 4.43, PAL, SECAM
MSW 4V SDI rs	SMPTE 259M
Control/remote — switcher
Serial control port	1 RS-232, 3.5 mm captive screw connector, 5 pole
Baud rate and protocol	9600 baud, 8 data bits, 1 stop bit, no parity
Serial control pin configurations	1 = TX, 2 = RX, 3 = GND
Contact closure	(1) 3.5 mm captive screw connector, 5 pole
Contact closure pin configurations	1 = input 1, 2 = input 2, 3 = input 3, 4 = input 4, 5 = GND
Program control	Extron Universal Switcher program for Windows® Extron Simple Instruction Set (SIS™)
General
External power supply	100 VAC to 240 VAC, 50-60 Hz, external, to 12 VDC, regulated
Power input requirements
MSW 4V rs, MSW 4SV rs	12 VDC, 0.2 A
MSW 4V SDI rs	12 VDC, 0.4 A
Cooling	Convection, no vents
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional mini under-desk mounting kit
Enclosure type	Metal
Enclosure dimensions	1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide) (4.3 cm H x 10.9 cm W x 6.5 cm D) (Depth excludes connectors.)
Product weight	0.6 lbs (0.3 kg)
Shipping weight	3 lbs (2 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, CUL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(7.6-091109-D4)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-480-11	6,2 cm	18,1 cm	24,1 cm	0,87 kg
