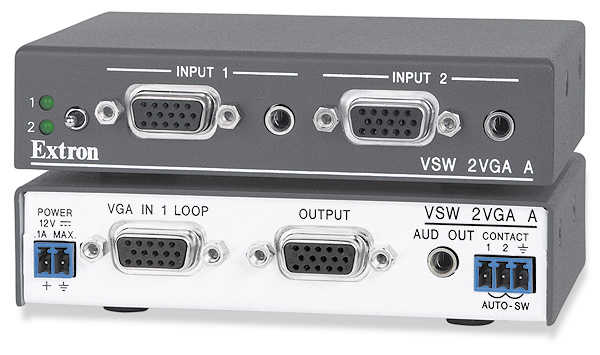

VSW 2VGA A

Technische Daten

VSW 2VGA A
Video
Gain	Unity
Bandwidth	300 MHz (-3 dB)
Video input and loop through
Number/signal type	2 VGA-QXGA RGBHV, RGBS, RGsB*, RsGsBs*, HDTV component video* input 1 VGA-QXGA RGBHV, RGBS, RGsB, RsGsBs, HDTV component video* local monitor loop-through
NOTE     RGsB, RsGsBs, and HDTV component video inputs and outputs work in manual mode only. Autoswitching requires TTL level sync on pin 13 of the 15-pin HD connector.
Connectors	3 female 15-pin HD
Pin connections	ID bits on pins 4, 11, 12, 15 from inputs 1 and 2: passed to main output Pin 9 of input 1: floating Pin 9 of input 2: used for the Show-Me feature
Nominal level	1.0 Vp-p for Y of component video 0.7 Vp-p for RGB and for R-Y and B-Y of component video
Minimum/maximum levels	Analog: 0.4 V to 1.8 Vp-p with no offset
Impedance	75 ohms
Horizontal frequency	15 kHz to 145 kHz
Vertical frequency	30 Hz to 170 Hz
Video output
Number/signal type	1 VGA-QXGA RGBHV, RGBS, RGsB*, RsGsBs*, HDTV component video* (follows input type)
Connectors	1 female 15-pin HD
Nominal level	1.0 Vp-p for Y of component video 0.7 Vp-p for RGB and for R-Y and B-Y of component video
Minimum/maximum levels	0.4 V to 1.8 Vp-p (follows input)
Impedance	75 ohms
NOTE     ID bits are passed through from VGA inputs to the VGA output.
Sync
Input type	RGBHV, RGBS, RGsB*, RsGsBs*, bi-level and tri-level (HDTV) component video sync
Output type	RGBHV, RGBS, RGsB*, RsGsBs*, bi-level and tri-level (HDTV) component video sync (follows input)
Input level	1.8 V to 5.0 Vp-p
Output level	TTL: 5.0 V p-p, unterminated
Input impedance	510 ohms
Output impedance	50 ohms
Max. input voltage	5.0 Vp-p
Max. rise/fall time	40 ns
Polarity	Positive or negative (follows input)
Audio
Gain	Unbalanced output: 0 dB
Frequency response	20 Hz to 20 kHz, ±0.05 dB
THD + Noise	0.002% @ 1 kHz at nominal level (-10 dBV)
S/N	94 dB at maximum output (unweighted)
Crosstalk	-50 dB @ 20 kHz, -75 dB @ 1 kHz and below 60 Hz
Stereo channel separation	96 dB @ 1 kHz
Audio input
Number/signal type	2 stereo, unbalanced
Impedance	22k ohms unbalanced, AC coupled
Nominal level	-10 dBV (316 mVrms)
Maximum level	+9 dBV, (unbalanced) at 1% THD+N
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu
Audio output
Number/signal type	1 stereo, unbalanced
Connectors	(1) 3.5 mm mini audio jack (tip, ring, sleeve)
Impedance	50 ohms unbalanced
Maximum level (Hi-Z)	>+9 dBV, unbalanced at 1% THD+N
Maximum level (600 ohm)	>+7 dBV, unbalanced at 1% THD+N
Control/remote — switcher
Contact closure	(1) 3.5 mm captive screw connector, 3 pole for momentary contact
Contact closure pin configurations	1 = input 1 select, 2 = input 2 select, 3 = GND Shorting all three pins together enables autoswitch mode.
Loop signal	Momentary low, 250 µs
General
External power supply	100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A (max.), regulated
Power input requirements	12 VDC, 0.1 A
Mounting
Rack mount	Yes, with optional 1U rack shelf
Furniture mount	Yes, with optional under-desk mounting kit or through-desk mounting kit
Pole mount	Yes, with optional pole mount kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 4.3" W x 3.0" D (quarter rack wide) 2.5 cm H x 10.9 cm W x 7.6 cm D (Depth excludes connectors.)
Product weight	0.5 lb (0.3 kg)
Shipping weight	3 lbs (2 kg)
Regulatory compliance
Listings	CE, c-UL, UL
Compliances	CE, C-tick, FCC Class A, ICES, VCCI
(7.6-102109-D6)

Versand-Abmessung und -Gewicht
Teilenummer	Höhe	Breite	Tiefe	Gewicht
60-758-01	6,4 cm	22,2 cm	31,3 cm	0,82 kg
