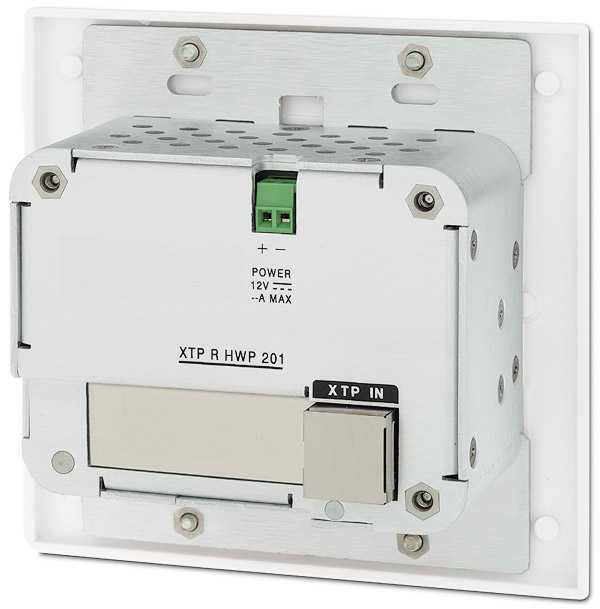

XTP R HWP 201
EUR
1752.00
€ 1752.00
Hersteller
Extron
Art.Nr.
60-1367-22
EAN
60-1367-22
Gewicht
1 kg
Produktbeschreibung
Hauptmerkmale
- Besonders flaches Wandanschlussfeld mit minimalem Platzbedarf hinter einem Flachbildschirm
- Empfängt Video mit Embedded Audio, bidirektionale RS?232- und IR- sowie Ethernet-Signale bis zu 100 m über ein geschirmtes CATx-Kabel
- Unterstützt Computer- und Videoauflösungen bis zu 1920x1200, einschließlich 1080p/60 Deep Color und 2K
- HDCP-konform
- Möglichkeit zur Fernspeisung
- Es wird ausdrücklich geschirmtes XTP DTP 24-Twisted Pair-Kabel von Extron für eine optimale Leistung empfohlen
Modell | Beschreibung der Version | Teilenummer | |
---|---|---|---|
XTP R HWP 201 | XTP-Empfänger für HDMI - Decorator-Format - Schwarz | 60-1367-22 | |
XTP R HWP 201 | XTP-Empfänger für HDMI - Decorator-Format - Weiß | 60-1367-23 |
Technische Daten
Technische Daten
-
XTP R HWP 201 NOTE The XTP R HWP 201 receiver can be used with other Extron XTP products, with twisted pair cables linking the units. NOTE *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output. Video Gain Unity Resolution range Up to 1920x1200*, 2K, or 1080p (HDTV)
* reduced blankingSignal type Single-link HDMI (or DVI-D*) Digital video RGB digital video (DVI and HDMI standards) or Y, Cr, Cb digital component video (HDMI), actively buffered (supports all single-link DVI (if using an optional adapter) and HDMI standards from 640x480 @ 60 Hz to 1920x1200 @ 60 Hz) EDID and DDC Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively buffered. HDCP Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI standards HPD Supports hot plug detection (HPD) of display as a pass-through signal. Maximum data rate 6.75 Gbps (2.25 Gbps per color) Maximum pixel clock 165 MHz Formats RGB and YCbCr digital video Standards DVI 1.0, HDMI; HDCP 1.1 Interconnection between transmitter and receiver Connectors 1 female RJ-45 per unit Termination standards TIA/EIA T568B XTP signal Signal transmission distance 330' (100 m) using shielded twisted pair or XTP DTP 24 cable Cable requirements Solid conductor, 24 AWG or better Cable recommendations 400 MHz bandwidth, STP (Shielded Twisted Pair) NOTE Extron XTP DTP 24 shielded twisted pair cable is stongly recommended for optimal performance. Video output Number/signal type 1 single link HDMI (or DVI-D*) Connectors 1 female HDMI type A Audio Gain Unbalanced output: 0 dB; balanced output: +6 dB Frequency response 20 Hz to 20 kHz, ±0.05 dB THD + Noise <0.1% @ 20 Hz - 20 kHz at nominal level S/N >90 dB, at maximum balanced output (unweighted) Crosstalk ?-80 dB @ 1 kHz, fully loaded Stereo channel separation >80 dB @ 1 kHz Sampling rates 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz Bit depths 16, 20, 24 bit Audio output Number/signal type 1 analog stereo (2-channel), balanced/unbalanced
1 digital audio, embedded with HDMI outputConnectors (1) 3.5 mm captive screw connector, 5 pole
1 female HDMI type A (shared with video output)Supported formats HDMI LPCM up to 7.1/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel Analog Analog stereo audio Impedance 50 ohms unbalanced, 100 ohms balanced Maximum level (Hi-Z) >+12 dBV balanced; +6 dBV unbalanced Gain error ±0.5 dB channel to channel Volume control range -100 dB to 0 dB (control 0 to 100 in 1 dB steps) NOTE Attenuation = volume number minus 64. The default is 0 dB = volume number 64. NOTE 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ? 2 dBu Communications — receiver USB control ports 1 front panel female mini USB B USB standards USB 2.0, low speed Program control Extron control/configuration program for Windows®
Extron Simple Instruction Set (SIS™)Communications — external device (pass-through, unidirectional or bidirectional) Serial control port input/output 1 set of proprietary signals on a female RJ-45 jack Serial control port output/input RS-232 (+5) via (1) 3.5 mm, 5-pole captive screw connector (uses 3 poles) (connector is shared with IR control port) Baud rates Up to 115200 baud Protocol Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, noneSerial control pin configuration 1 = Tx, 2 = Rx, 3 = GND Ethernet pass-through port 1 female RJ-45 connector Ethernet data rate 10/100Base-T, half/full duplex with autodetect IR control port (1) 3.5 mm, captive screw connector, 5 pole (connector is shared with RS-232 control port)
TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 40 kHzIR control pin configuration 3 = GND, 4 = IR Tx, 5 = IR Rx General Power supply External
Input: 100-240 VAC, 50-60 Hz
Output: 12 VDC, 1.5 A, 18 wattsPower consumption Device 8.2 watts, 12 VDC Device and power supply 10.0 watts, 12 VDC NOTE Each XTP receiver can be powered either locally by an external power supply or remotely using an optional power injector. Temperature/humidity Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensingCooling Convection, vents on bottom and top Thermal dissipation Device 26.6 BTU/hr Device and power supply 33.0 BTU/hr Mounting Furniture or wall mount Wall or furniture mount in a decorator-style opening. Enclosure type Metal Enclosure dimensions Faceplate Two (2.6" H x 1.3" W x 0.9" D
[6.6 cm H x 3.3 cm W x 2.3 cm D])Device 2.8" H x 3.7" W x 1.9" D
(7.2 cm H x 9.4 cm W x 4.9 cm D)
(Depth excludes connectors. Fits some 2-gang boxes.)Product weight 0.8 lbs (0.4 kg) Vibration ISTA 1A in carton (International Safe Transit Association) Regulatory compliance CE**, c-UL, UL, C-tick, FCC Class A**, ICES, VCCI
UL rated for use in plenum airspaces, excluding the power supply.
Complies with the appropriate requirements of RoHS and WEEE.NOTE **CE and FCC testing is conducted with STP (shielded twisted pair) cable. Product warranty 3 years parts and labor Everlast power supply warranty 7 years parts and labor NOTE All nominal levels are at ±10%. NOTE Specifications are subject to change without notice. (4445-D5) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 60-1367-22 8,9 cm 24,1 cm 18,1 cm 1,06 kg 60-1367-23 8,9 cm 24,1 cm 18,1 cm 1,06 kg
