HDMI Ultra-Serie
EUR
84.00
€ 84.00
Hersteller
Extron
Art.Nr.
26-663-06
EAN
26-663-06
Produktbeschreibung
Hauptmerkmale
- ? Zertifiziert zur Verwendung mit AVEdge-, Cable Cubby®- und HSA-Einbaugehäusen

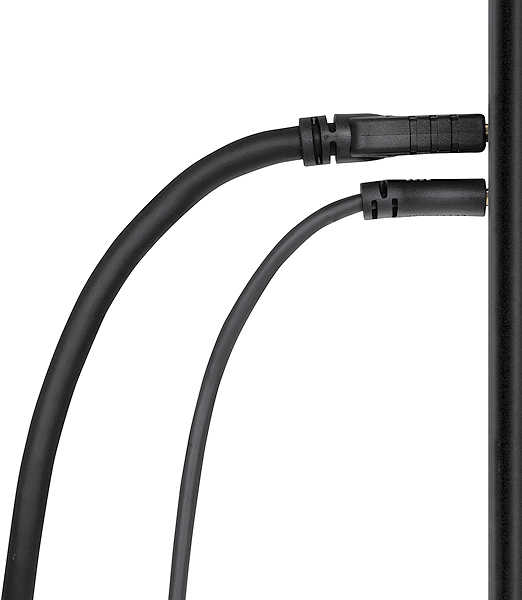

- Ultraflexible HDMI-Kabel
- Konform mit den Leistungsstandards für Premium High Speed- und High Speed-HDMI-Kabel
- 4K/60-verifiziert bis zu 3,6 m
- 4K/30-verifiziert bis zu 4,5 m
- Verfügbar in den Längen von 45 cm bis zu 4,5 m
| Modell | Beschreibung der Version | Teilenummer | |
|---|---|---|---|
| HDMI Ultra/1.5 | 45 cm - 4K Premium-Kabel | 26-663-02 | |
| HDMI Ultra/3 | 90 cm - 4K Premium-Kabel | 26-663-03 | |

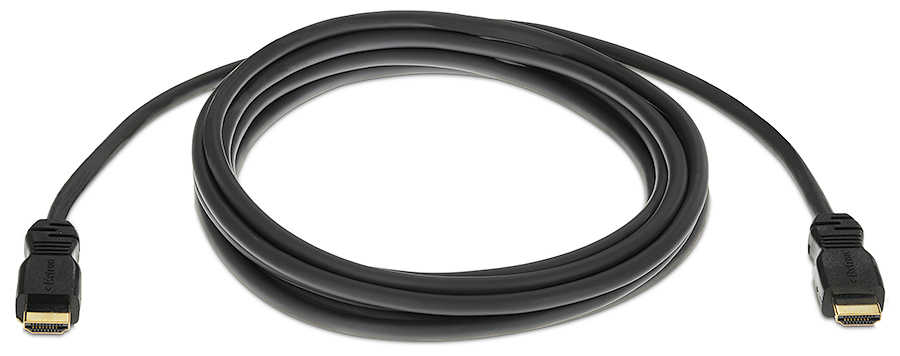

| HDMI Ultra/6 | 1,8 m - 4K Premium-Kabel | 26-663-06 | |
| HDMI Ultra/9 | 2,7 m - 4K Premium-Kabel | 26-663-09 | |
| HDMI Ultra/12 | 3,6 m - 4K Premium-Kabel | 26-663-12 | |
| HDMI Ultra/15 | 4,5 m - 4K Premium-Kabel | 26-663-15 |
Technische Daten
Technische Daten
-
HDMI Ultra Series Cables
specification
Frame rate 1 24, 25, 30, 50, or 60 fps Chroma sampling 1 4:4:4, 4:2:2, or 4:2:0 Color bit depth 1 8 bits per color Signal type HDMI 2.0 Max. video data rate 18.0 Gbps (6.0 Gbps per color) NOTE 1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate. Performance/electrical Resolution range Premium High Speed HDMI cable — Up to 12' (3.6 m) Up to 4K @ 60 Hz (4096x2160), UHD @ 60 Hz (3840x2160)
8 bit color depth, max. 18.0 Gbps data rateHigh Speed HDMI cable — Up to 15' (4.5 m) Up to 4K @ 30 Hz (4096x2160) or UHD @ 30 Hz (3840x2160)
8 bit color depth, max. 10.2 Gbps data rateVoltage 30 V Pair impedance 100 ohms ±10 ohms Attenuation At 0.3 - 0.825 GHz: ?5 dB per 3 m
At 0.825 - 2.475 GHz: ?12 dB per 3 m
At 2.475 - 4.125 GHz: ?20 dB per 3 m

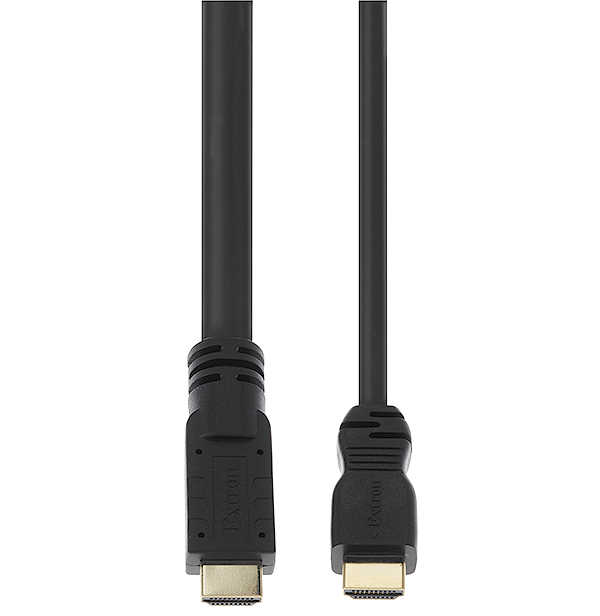

At 4.125 - 5.100 GHz: ?25 dB per 3 mFEXT ?20 dB per 3 m Skew Intrapair ?112 ps per 3 m Interpair ?1.78 ns per 3 m General — physical characteristics Connector type 1 male type A HDMI to 1 male type A HDMI Contacts Gold plated Material Conductors: tinned copper, 30 AWG
Drain wire: tinned copper, 32 AWG
Shielding: fluorocopolymer tape binder, tinned copper braid
Jacket: PVCConnector dimensions 1.40" L* x 0.77" W x 0.44" thick
(35.6 mm L* x 19.7 mm W x 11.1 mm thick)
*Length excludes plug.
Cable dimensions Cable outer diameter 0.22" (5.7 mm) Bend radius 0.80" (20.3 mm) NOTE Dimensions given above exclude the cable length. Regulatory compliance Safety UL VW-1, CSA FT-1 Temperature rating 80 °C Product warranty Limited Lifetime Performance NOTE Specifications are subject to change without notice. (4114-D6) Versand-Abmessung und -Gewicht Teilenummer Höhe Breite Tiefe Gewicht 26-663-02 1,9 cm 20,3 cm 22,2 cm 0,05 kg 26-663-03 1,9 cm 20,3 cm 22,2 cm 0,07 kg 26-663-06 2,5 cm 15,2 cm 15,2 cm 0,09 kg 26-663-09 1,9 cm 20,3 cm 22,2 cm 0,12 kg 26-663-12 1,9 cm 20,3 cm 22,2 cm 0,16 kg 26-663-15 2,2 cm 20,3 cm 22,2 cm 0,18 kg
